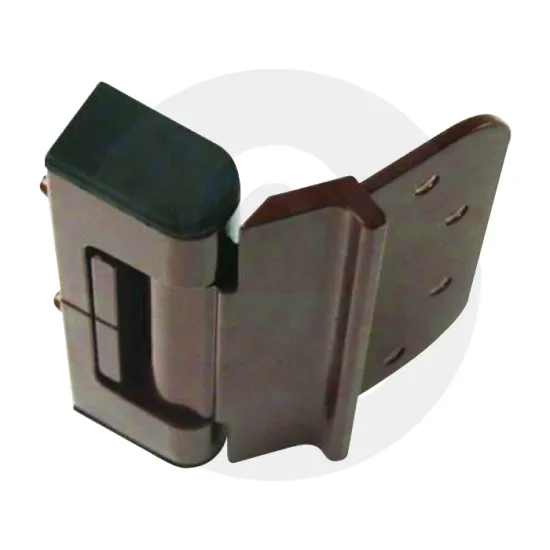

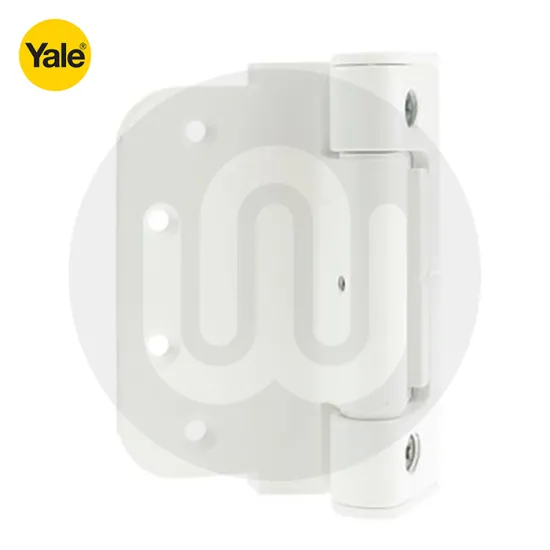

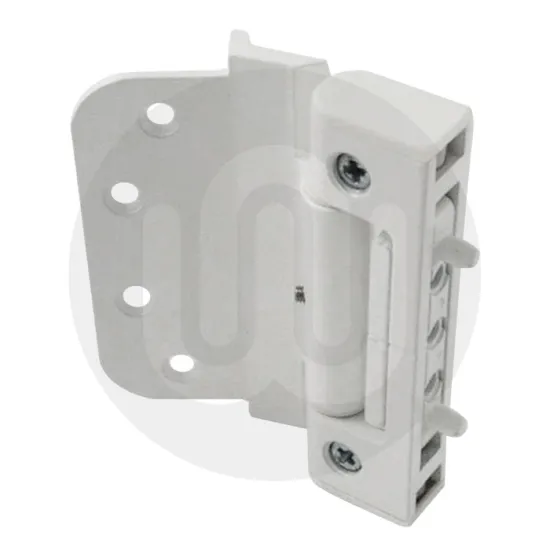

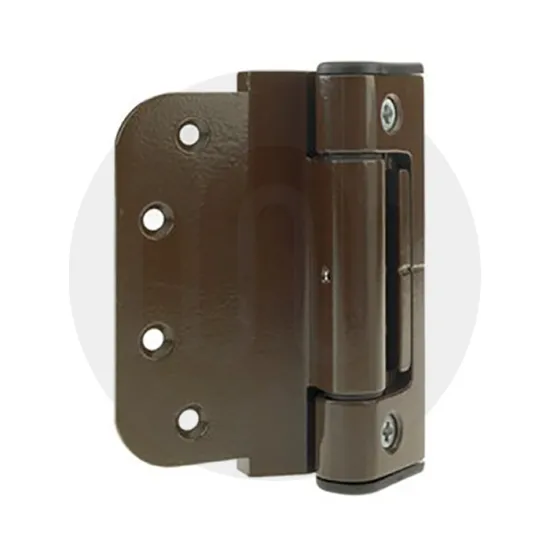

Yale Elevator 2D Composite Door Hinge

Yale Elevator 2D Composite Door Hinge

The Elevator for composite doors has been specifically developed to work on 44mm thick composite doors in conjunction with the Yale hinge cover strip, delivering both easy vertical and lateral adjustment, together with superior aesthetic appeal. The dedicated fitting, jig not only positions the hinges, but also positions the door with the correct air gap from the frame.

Features:
- 2D adjustable butt hinge
- Easy adjustment with door in situ
- Lateral adjustment +2mm,
- Vertical adjustment +3mm
- Available with 0, 5 and 15 degree bevels
- Suitable for most PVC profiles
- Easy to use fitting jigs available

Specifications:
- Corrosion resistance to EN1670:2007 Grade 4
- Tested to a minimum order 100,000 cycle operational lifespan
