Elite Flag Hinge

Elite Flag Hinge

The Elite Flag Door Hinge, ergonomically designed to suit PVC-U door profiles and fully 3D adjustable. Patent pending “Anti-lift” security feature, with a 2.5mm steel carriage plate offering enhanced performance and security. Along with the “Elite” furniture signature dimple on the cover for a suited range.

-Partially assembled ready to fit.
-Can achieve PAS24 accreditation as part of a complete door assembly.
-Manufactured in Steel and Stainless Steel, Aluminium and Zinc alloys.
-Steel / Stainless Steel sash plate for superior strength
-Patent pending Unique Anti-lift security feature.
-3D Independent vertical, lateral and compression adjustment.
-Non-handed.
-10 year mechanical guarantee.
-Available in 19mm and 22mm height options, variety of hinge packers available.

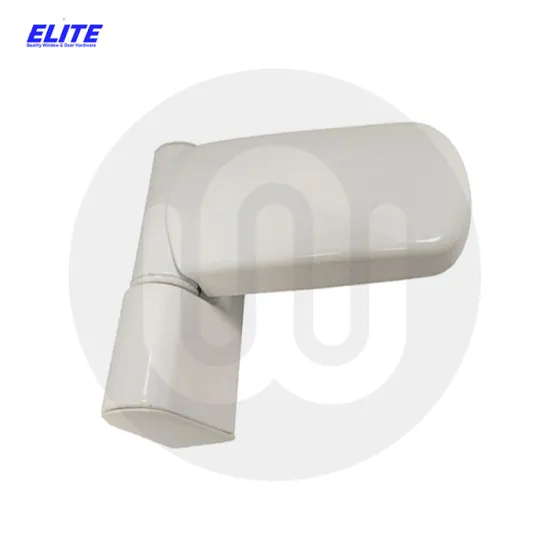

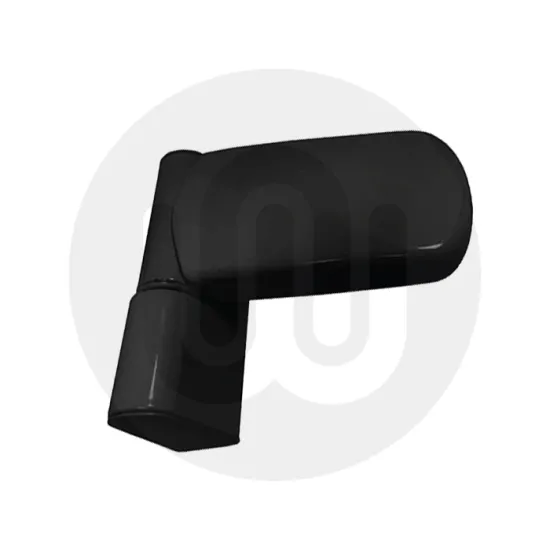

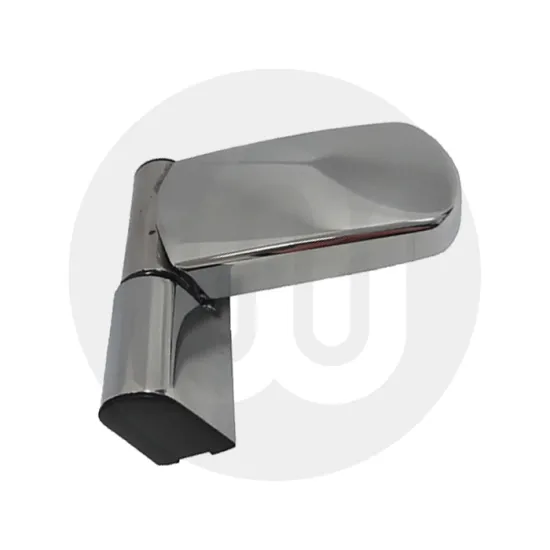

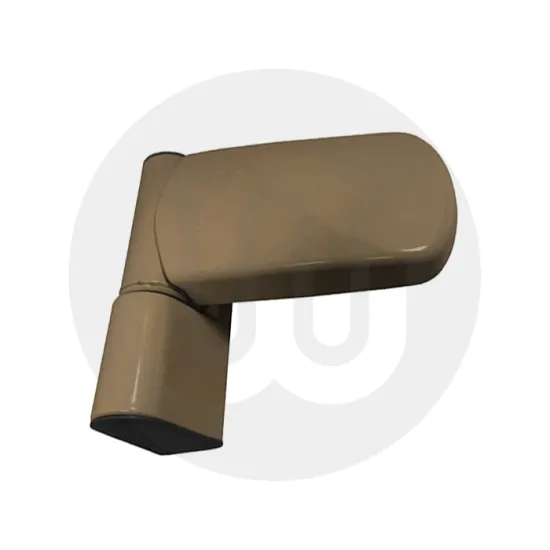

-Available in PVD Gold, Polished Chrome, Smokey Chrome, White, Black, Silver, Anthracite, Brown, Champagne Gold and Oak. (All UV stabilised).

Testing:
-Corrosion tested to BS EN 1670*
-Grade 5 painted finishes
-Grade 4 plated finishes
-Cycle tested to 100,000 cycles, conforms to BS EN1191
-PAS24 compatible when tested as part of a door assembly

3D Adjustments
-Vertical + 6mm (+/-3mm)
-Compression (+/- 3mm)
-Lateral (+/-6mm)

Maximum weight carrying capacity
 -2 hinges 80kg – 3 hinges 120kg
-Approximately 1m wide x 2.2m high

Material Specifications
-Zinc alloy
-Aluminum alloy

-Steel
-Stainless Steel Grade 430
-Plastic – GF Nylon, UV Stabilised
-ABS and Acetal
