OMEC 1410S.30.25 Dead and Adjustable Latch Bolt 3 Locking Points Bi-Fold Lock

OMEC 1410S.30.25 Dead and Adjustable Latch Bolt 3 Locking Points Bi-Fold Lock

Slim Lockcase 15mm

• Ideal for all thermic and Euro Groove profiles.
• It reduces to the minimum the holes on the profiles for the installation of the locks.
• Closed lockcase to stop profile machining chips from entering into the locks’ mechanism.

Easy to Replace

• Perfectly interchangeable with all vertical security locks already installed.
• Designed and tested according to European Standard EN 12209:05

Silent Latch Bolt

• The new latch bolt with nylon inserts guarantees a perfectly silent closure of the door and reduces the use of the striking plates

Easy to Turn

• 3 versions in 1 lock: adjustable latch bolt (~ 5 mm) interchangeable with roller bolt and plug for the dead bolt only version.
• Universal latch bolt, roller bolt and plug can be used on all Omec security vertical locks.
• Up to 3 locking points version with additional locking points devices.

Top Materials

• Faceplates, additional locking points devices, internal components and springs, all made of STAINLESS STEEL to get higher corrosion resistance (tested 240 h), better esthetic quality and durability.
• Zinc and plastic-plated steel lockcase and cover.
• Special nickel and chrome plated alloy latch bolt and dead bolt.

Top Security

• Chrome special alloy tipping dead bolt, thickness 8 mm, excursion 24 mm.
• Lock picking system dead bolt to maximize the security of the lock.

Additionals Locking Points for Series 1410S

• Compatible with Omec kits for additional locking points with tipping dead bolts to meet any needs of security closing with rods and additional latches, up to 5 locking points and to any door length.

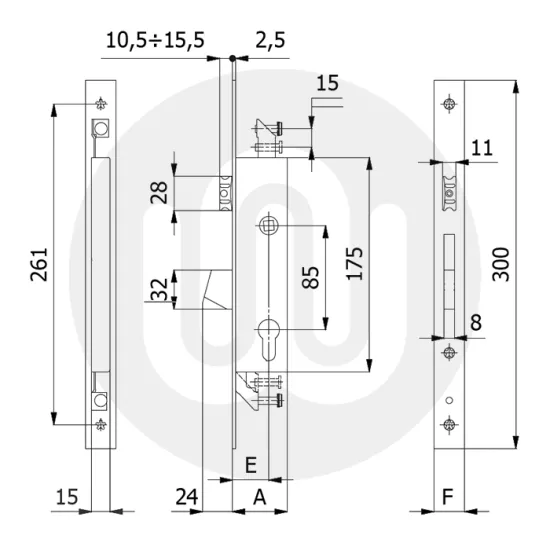

Technical Details:

-Backset: 30mm (E)

-PZ: 85mm

-Faceplate Width: 25mm (F)
