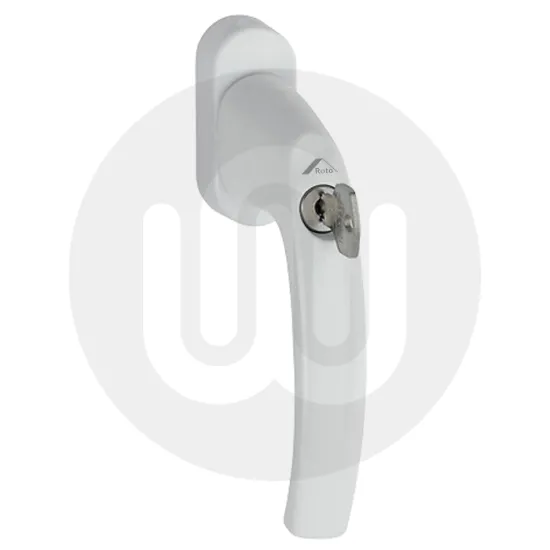

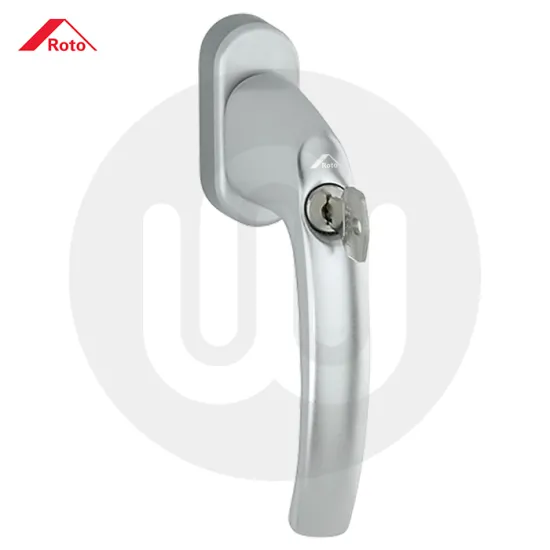

Roto Tilt Safe Tilt & Turn Handle - Locking

Roto Tilt Safe Tilt & Turn Handle - Locking

The handle can be locked in the closed position and when unlocked, the handle moves freely to 90° to the tilt position. The turn position is accessed by a simple quarter turn of the key while operating the handle. The handle automatically returns to the tilt safe position when the window is closed.

Technical Details:

Fixing centres - 43mm (industry standard)
Spindle length - 33mm
Length of backplate - 66mm
Width of backplate - 29mm
Length of lever - 128mm
Overall Length (including backplate and lever) - 144mm
Overall depth (including lever and backplate) - 65mm
