Siegenia SI-LINE S-ES Standard Full Tilt & Turn System (Face Fix)

Siegenia SI-LINE S-ES Full Tilt & Turn System (Face Fix)

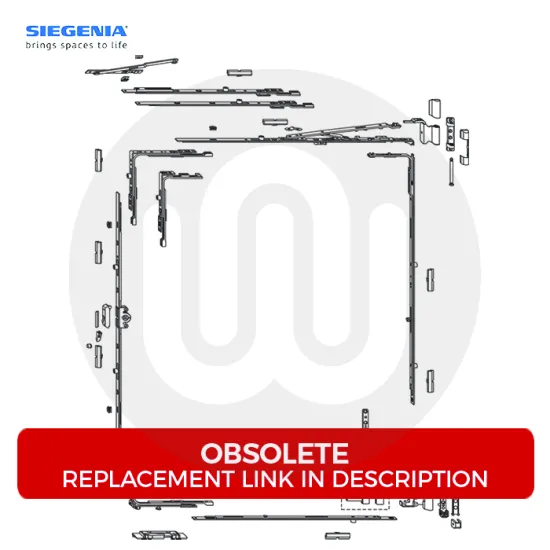

This item is now OBSOLETE. Please follow the link below for a suitable replacement:
https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Simplefit-Face-Fix-Tilt-Turn-Kit.html

Suitable for PVCu Windows with 9mm or 13mm Eurogroove Axis
Max sash weight: 100Kg
Sash rebate width range (SRW): 290 - 1570mm
Sash rebate height range (SRH): 480 - 2360mm
Max SRH:SRW ratio: 1:1.5
Variable handle height

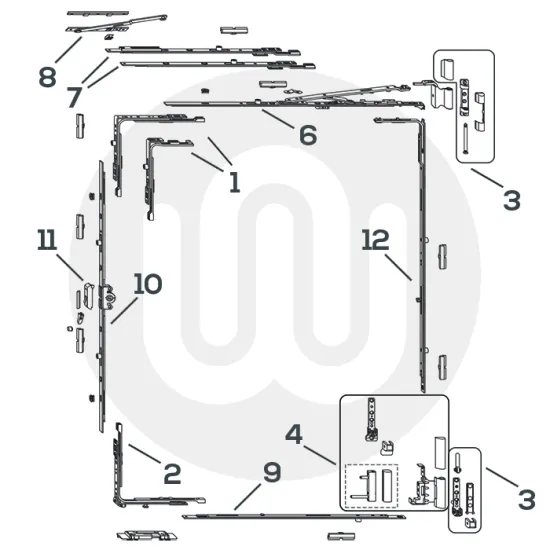

If you require a specific part of this system, please find the number on image 2 and follow the corresponding link below:

1. Top Corner Drive: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/siegenia-top-corner.html

2. Bottom Corner Drive: https://store.northwesthardware.co.uk/Siegenia-Bottom-Corner.html

3. Hinge Component Bag: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-SILINE-Hinge-Component-Bag.html

4. Bottom Hinge Kit: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-SILINE-Bottom-Hinge-Kit.html

5. Stay Angle: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-Stay-Angle.html

6. Scissor Stay: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/siegenia-scissor-stay.html

7. Scissor Stay Extension: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-Scissor-Stay-Extension.html

8. Additional Stay: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-SI-LINE-Additional-Stay.html

9. Horizontal Centre Lock: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-Horizontal-Centre-Lock.html

10. 15mm BS Variable Handle Height Drive Gear: https://store.northwesthardware.co.uk/siegenia-aubi-drive-gear.html

11. Anti-Mishandling Device:

12. Vertical Centre Lock: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Siegenia-Vertical-Centre-Lock.html

13. Tilt Restrictor:

14. TBT Striker:
