Siegenia Trident Espag Rod

Siegenia Trident Espag Rod

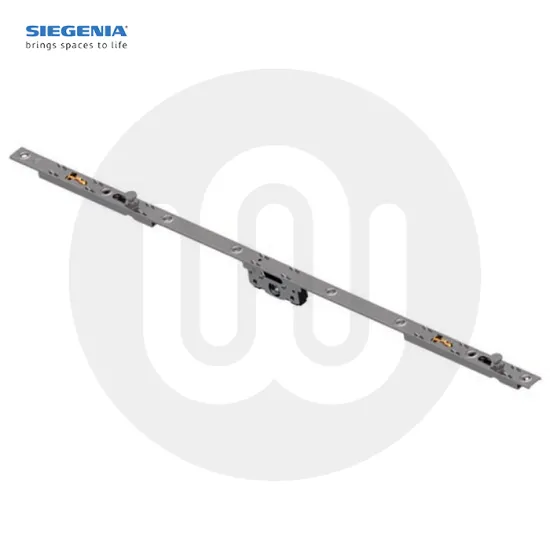

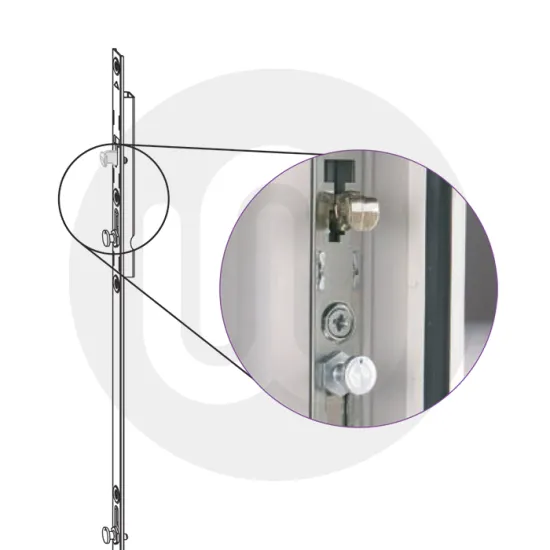

The Trident high security espagnolette system incorporates a hook and mushroom cam at each locking point, providing enhanced sealing and exceptional security. When the gearbox is operated the hooks are thrown and travel simultaneously with the cams into their striker.
When compared with traditional shootbolts, the Trident espagnolette provides bene ts during fabrication. By eliminating the need for cropping we estimate that fabrication efficiency can be improved by up to 30%.
This new security technology has been rigorously tested to ensure that the Trident espagnolette meets the police preferred specification requirements of Secured By Design and enhanced security requirements of BS 7950.

Technical Details:

Backset: 20 or 22 mm
Cam: 8mm
Size Range: Min. 300mm - max. 1400mm
Travel: 16mm
Faceplate: 16mm
Locking Points: 2 x hooks (excluding 300mm espag)
Sealing Points: 2 - 4 mushroom cams compression adjustable +/-1mm

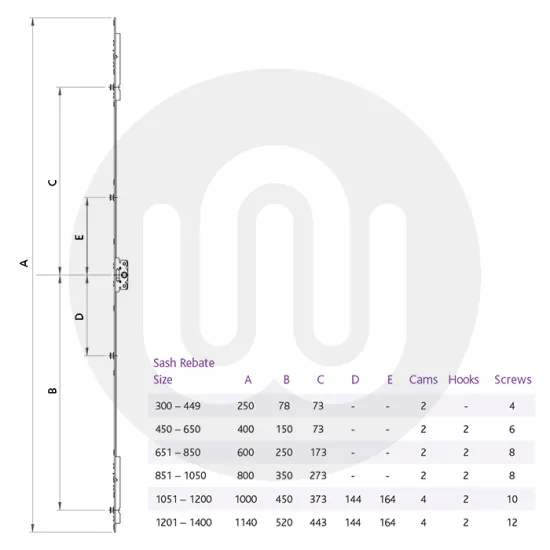

(see the 'Specification' tab for detailed measurements per size)
