Trojan TS008 Unicorn Letterplate

Trojan TS008 Unicorn Letterplate

The unique, patent pending, TS008 Unicorn Letterplate is designed to meet the exacting requirements of TS008. It’s suitable for doorsets that need to be Document Q or PAS 24 compliant. Manufactured from 304 Stainless Steel for ultimate corrosion resistance, its simple but elegant styling will complement any doorface.

- Unique Design, Patent Pending
- TS008 accredited
- Conforms to PAS24:2016 and Approved Document Q

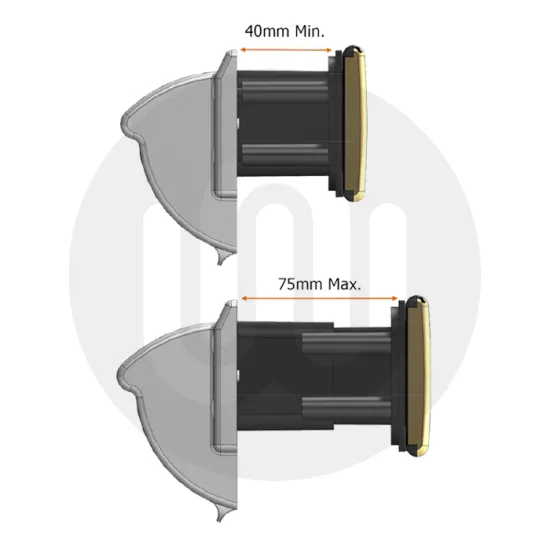

- Suitable for both Composite Doors and PVC-U Doors (range from 40mm to 75mm)
- External lap is manufactured from 304 Stainless Steel for ultimate corrosion resistance
- Inner protective housing has unique concealed hinge mechanism to prevent attack
- Inner lap has a positive stop feature for maximum protection from ‘fishing’
- Inner lap projection is below door handle height for added protection
- Will it any door to meet TS008 accreditation without the need to retest
- Cycle tested to 20,000 cycles
- Available in a full choice of external finishes

Technical Details:
Opening Size: 246mm x 49.4mm
Screw Centres Horizontally: 274mm
Screw Centres Vertically: 28mm
