Trojan Trillion T Flag Hinge
Trojan Trillion T Flag Hinge
£12.54
Inc. TAX: £15.04
- SKU: TTDH
Available Options

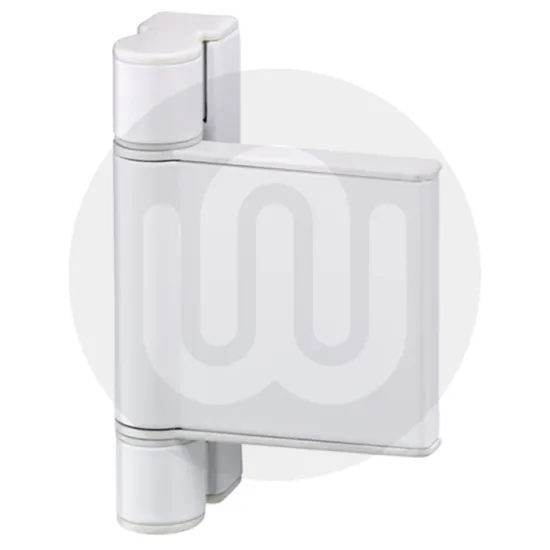

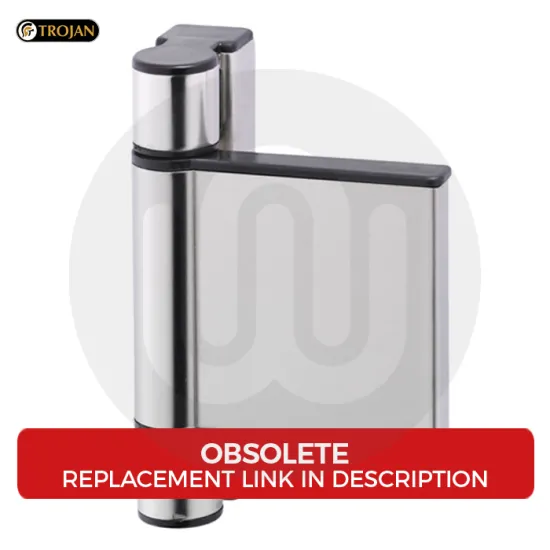

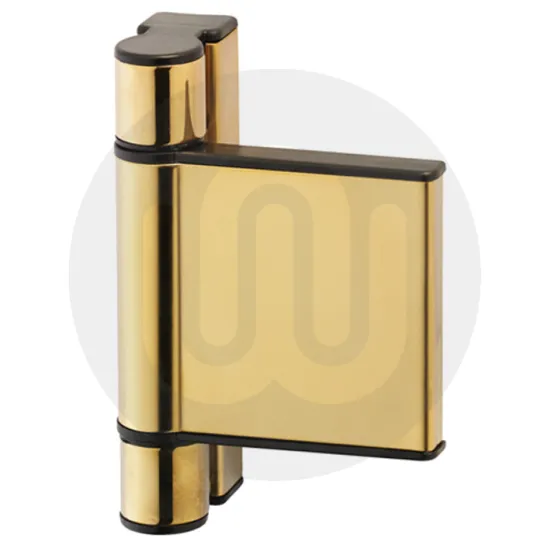

Trojan Trillion T Flag Hinge
- Sliding top pivot for easy installation
- Ultra slim 18mm wide frame plate allows for increased plaster line
- ‘Place and set’ lateral and vertical adjustment ensures alignment
- ‘Click stop’ linear compression adjustment for easy seal without affecting lateral setting
- Pressed stainless steel construction for ultimate corrosion resistance
- Maximum Frame Upstand: 23mm
The Trillion Hinge’s maximum Frame Upstand is 23mm, packers (2mm or 4mm) are fitted to the underside of the flag when required, rather than the conventional method of fitting to the frame part. The hinge allows for 1.25mm +/- lateral adjustment.

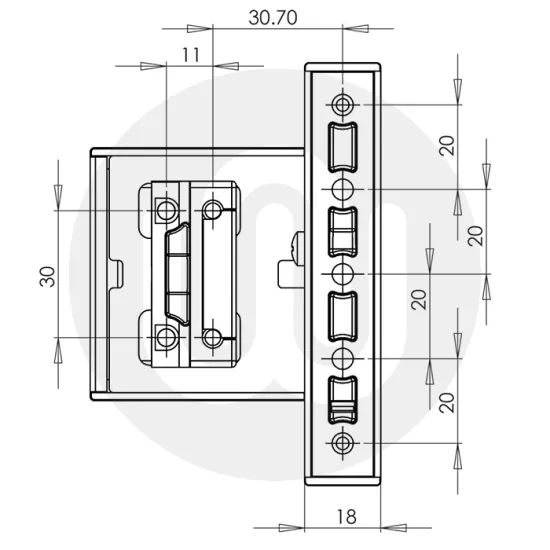

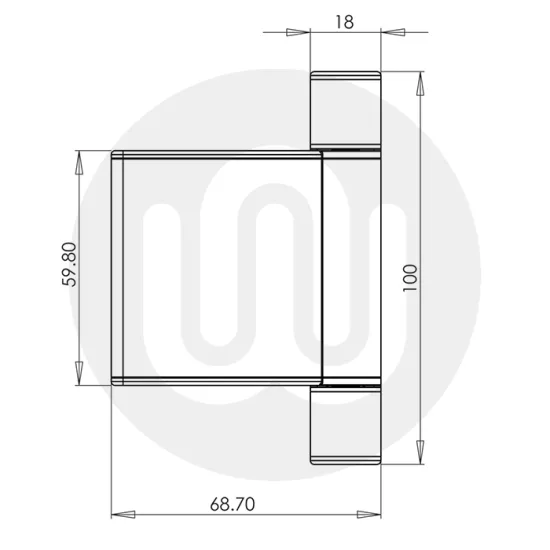

Technical Details:
Overall height: 100mm
Height of flag: 59.8mm
Overall width: 68.7mm
Upstand width: 18mm
