UCEM 3 Deadbolt Kit - Possible Gridlock Lock Replacement

We offer this kit as a possible replacement for the now obsolete Gridlock 3 Deadbolt E Series multipoint lock.
As the PZ (euro-handle distance) is different in these 2 locks, some repair work is going to be needed, but this is the only replacement option there is at the moment, other than replacing the entire door.

*Colour on the drop down menu refers to the colour of the handle only.

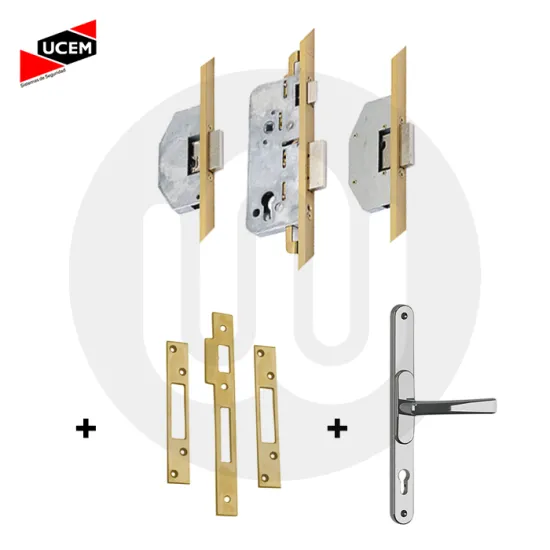

The kit includes:

1x UCEM multipoint door lock with 3 deadbolt locking points.

Technical Details:
Single Spindle
Backset: 50mm
Distance between deadbolts: 1485mm
Faceplate: 20mm U-Rail
(you can find the detailed technical drawing under the 'Specification' tab)

--------

1x UCEM Keep Set

The set includes one Centre Keep and 2 Deadbolt Keeps

Technical Details:

Centre Keep:
Length: 230mm
Width: 35mm (widest point)

Deadbolt Keeps:
Length: 160mm
Width: 25mm (widest point)

--------

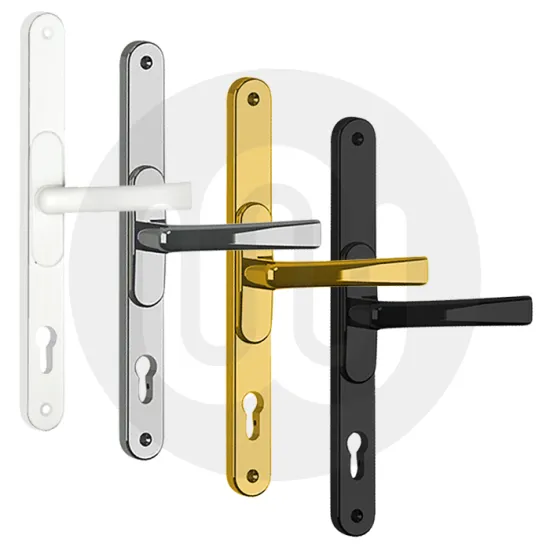

x1 Multi-positional Door Handle

Technical Details:

Overall Size: 30 x 290mm
Screw Centres: 260mm
PZ: 62-99
