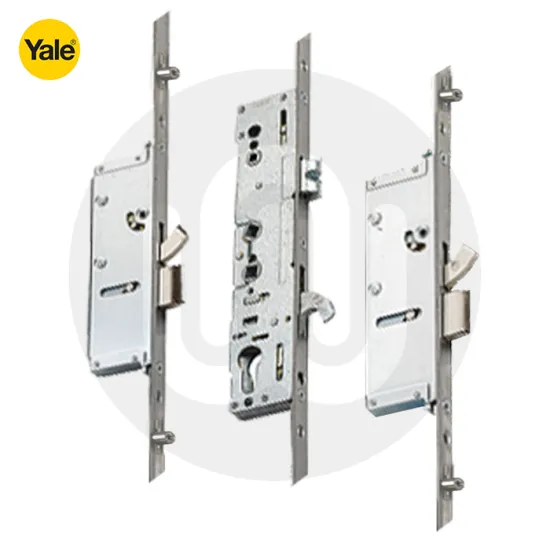

Yale YM04-35H-003 Mantis 4 3 Hook 2 Deadbolt 4 Roller

-The faceplate is produced from hardwearing Grade 430 stainless steel, whilst the striker plates are constructed from mild steel.
-As with the later Mantis 3 locks, the centre lockcase features a central hook and ‘easy reverse’ latch.
-The latch features a ‘hold-back snib’ operation. To activate, push in the latch when the door is open and the locking points are retracted. This ensures that the door cannot be held shut on the latch. To de-activate the snib, the door should simply be closed and the locking points thrown.

Mantis 4 locks are designed to meet the requirements of PAS24:2022 and are rated as Q-secure PREMIUM.

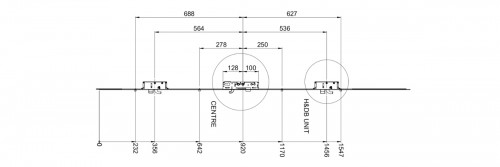

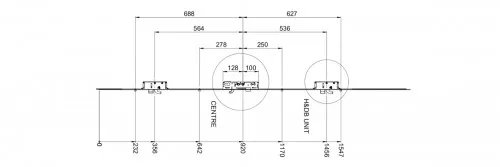

Technical Details:

-Backset: 35mm

-Distance between hooks: 1100mm

-Distance between inner rollers: 528mm

-Distance between outer rollers: 1315mm

-Faceplate: 16mm

-Double Spindle 92/62mm

-Overall Length: 1990mm
