Mila Style 7000 Series Latch Only Centre Case

Name: Mila Style 7000 Series Latch Only Centre Case
Brand: Mila
SKU: NWHLC1-47 / 48 / 60
Price: 25.70 GBP
Availability: InStock

Mila Style 7000 Series Latch Only Centre Case

Based on 0 reviews. - Write a review

£25.70

Inc. TAX: £30.84

SKU: NWHLC1-47 / 48 / 60

Mila

Available Options

Select Size

Qty

Add to Cart

Ask Question

Add to Wish List Compare this Product

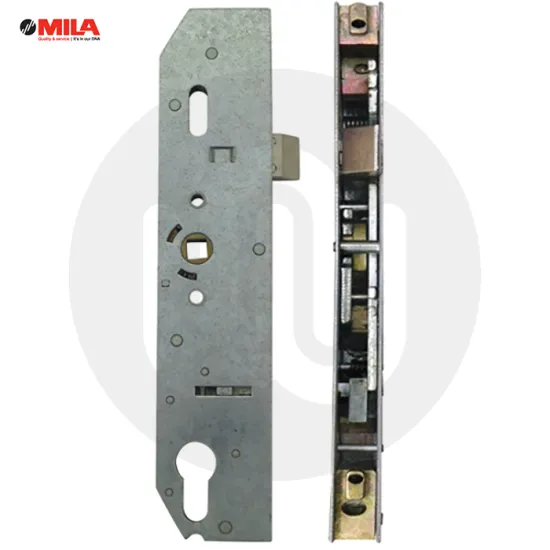

Mila Style 7000 Series Latch Only Centre Case

This Mila Style 7000 Series Latch Only Centre Case is the perfect replacement for broken units on many Mila multipoint door locks. If your locking mechanism is not working, you may not need to replace the full lock strip, it may just be a matter of replacing the centre case.

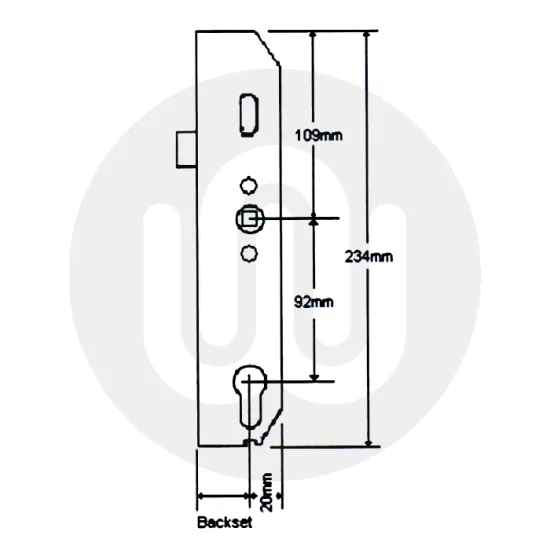

Technical Details: -

Overall Height: 234mm

Case Depth: Backset + 20mm

PZ: 92mm

A double spindle option will be sent for either single or double spindle centre cases, simply put your spindle through the top hole to operate your lock.

ATTENTION:

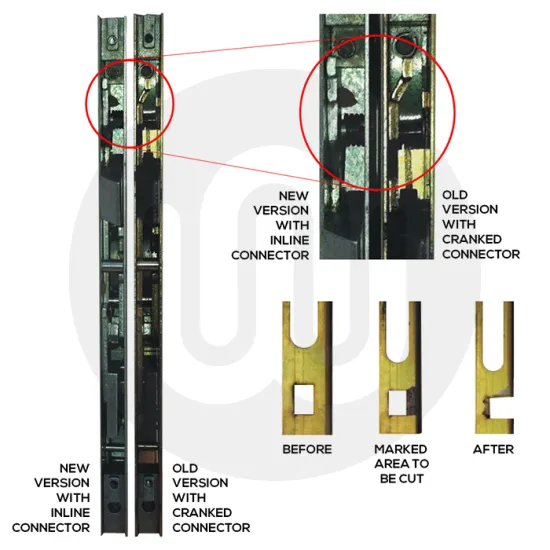

Old versions of this centre case had the cranked top connector, while new versions have an inline. However the new version can still be used by cutting out the piece of metal under the faceplate to create a slot. Please see the second image for visual guidance.
