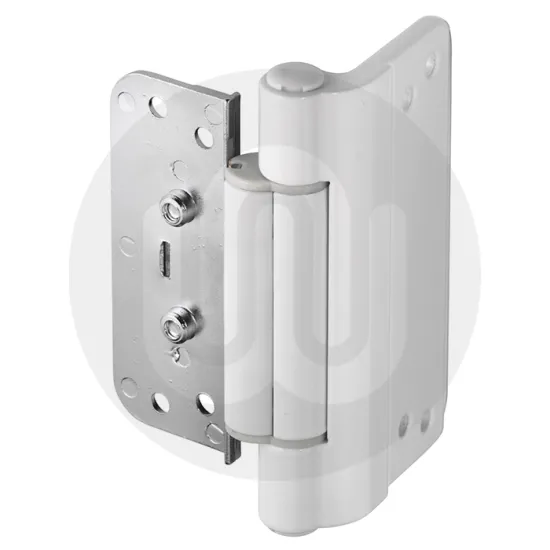

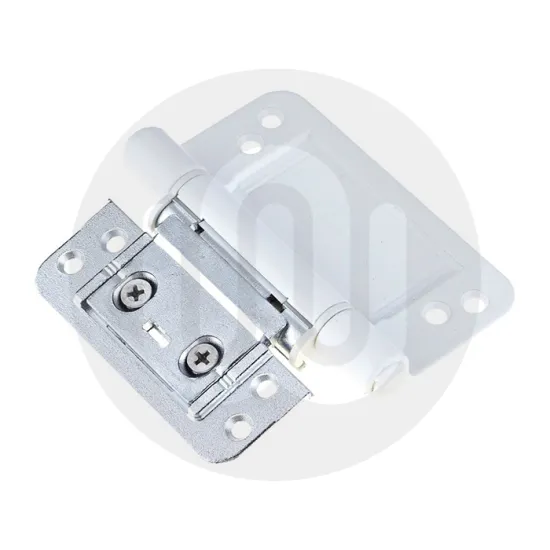

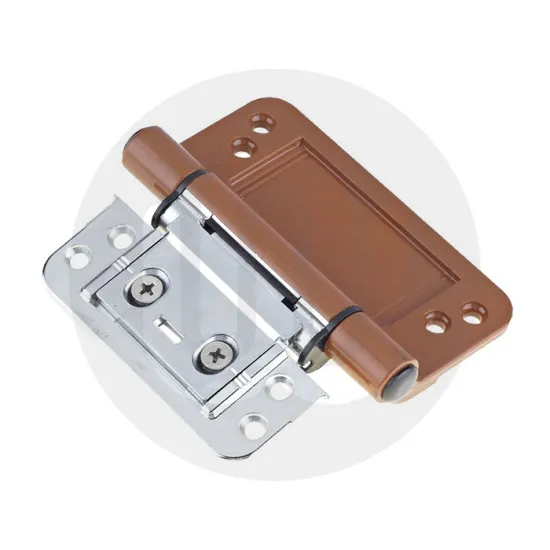

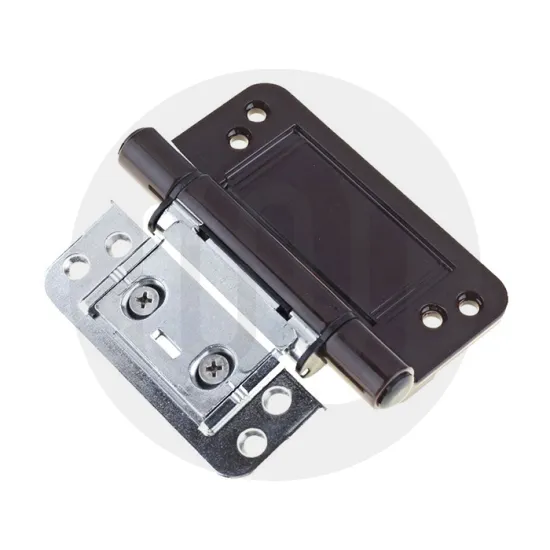

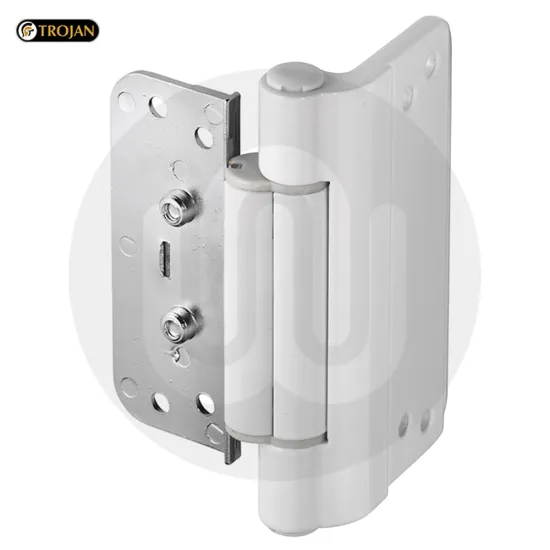

Trojan 3D Composite / Door Stop Hinge

Trojan 3D Composite / Door Stop Hinge

The 3D Composite door hinge offers the unbeatable combination of innovation and quality. The hinge is quick and simple to fit and once fitted the door slab is detachable from the frame, thus simplifying installation. The 3D hinge is easily adjusted in all planes, either in the factory or onsite, ensuring perfect door alignment for years of trouble-free operation.
- Full 3D adjustment for a perfect door fit.
- Simultaneous vertical adjustment across all hinges which ensures even load distribution.
- Lateral adjustment is done in a single operation which gives a perfect alignment on the pivot axis.

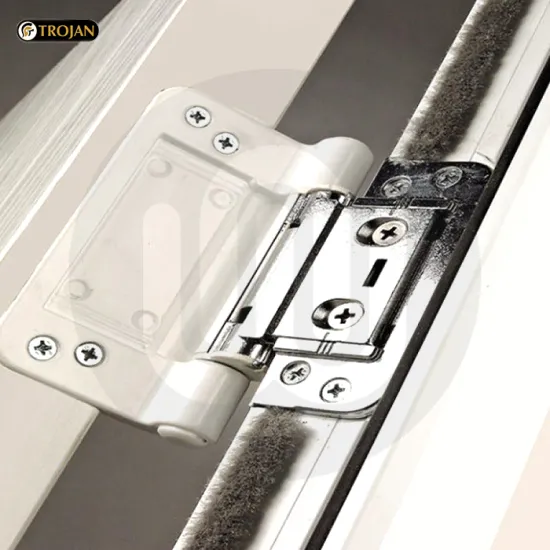

- Fits into rebate to give unobtrusive secure design.
- Sash can easily be removed from frame for easy installation.

View PDF file with Adjustment Instructions by clicking HERE
