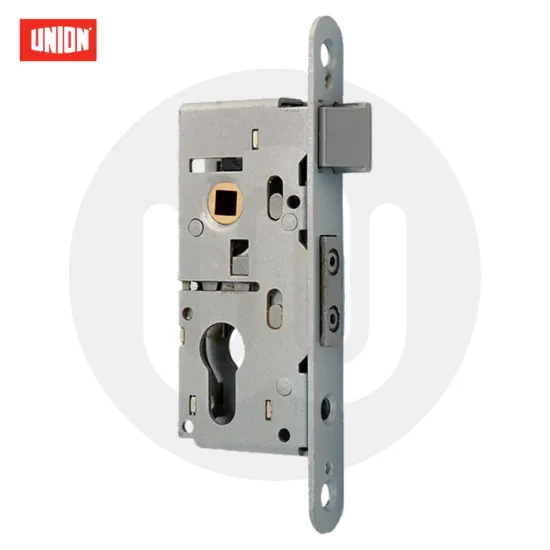

Yale L22070 Euro Sash Case

The Yale (Union) L22070 sashcase is a euro operated double throw latch and deadbolt case with a 36mm backset. It has 48mm centres and a 54mm case depth making it suitable for metal doors.

Features

  • Suitable for metal doors
  • Latch & Deadbolt
  • Reversible Latch Bolt
  • Euro Profile Lock Case
  • Supplied without faceplate and striking plate as no longer available
  • Double throw deadbolt 1st throw =12mm, 2nd throw goes a further 12mm.

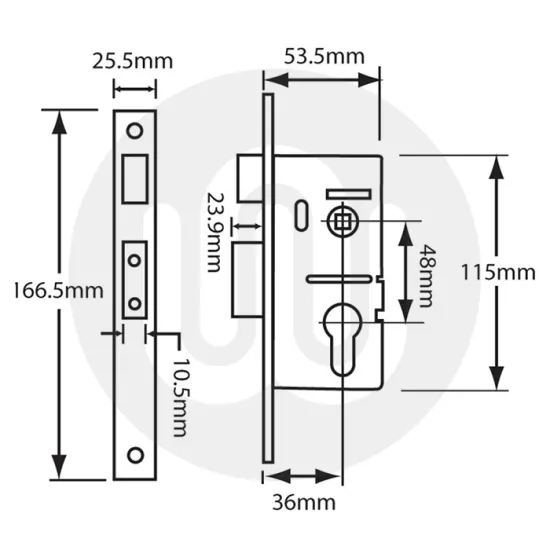

Technical Details:

Backset: 36mm
PZ: 48mm
Case Height: 115mm
Case Width: 52mm
Faceplate: 166.5mm x 25.5mm
