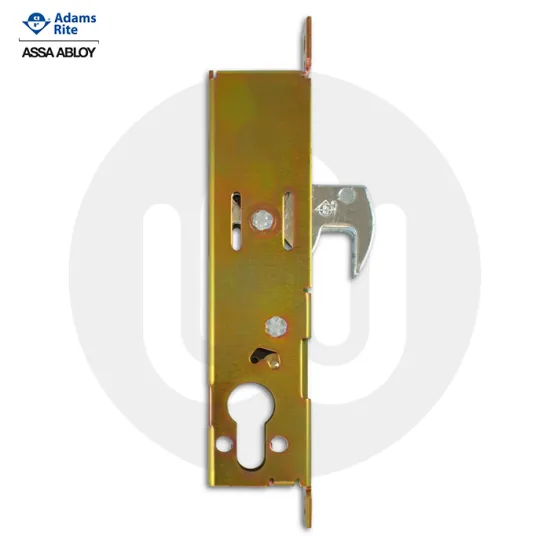

Adams Rite MS2200 Euro Hookbolt Case

Adams Rite MS2200 Euro Hookbolt Case

The Adams Rite MS 2200 hook bolt provides maximum security locking for both swing and sliding aluminium doors using a europrofile cylinder.
Hookbolt operated by euro profile cylinder with key on outside and key or turn on the inside.

Specification:
- 2/3 point locking available when used with 4022-18 kit
- Alumina ceramic core in bolt to prevent hacksaw attack
- Retains the same uncomplicated pivot mechanism and all the security features associated with the other MS Deadlocks
- Riv-nut fixing version available
- Available on aluminium and steel doors
- Monitoring avaliable on selected variants
- The MS 2200 lockbody has been designed to cater for 17mm Europrofile as standard

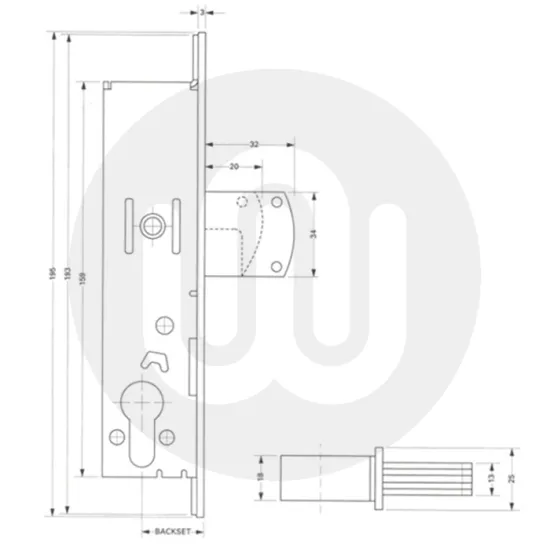

Technical Details:
Faceplate Size: 25mm x 195mm
Case Height: 159mm
Case Width: 18mm
Case Depth: 41mm / 46mm / 56mm (depending on backset)
Hookbolt Projection: 20mm
Screw Centres: 180mm
