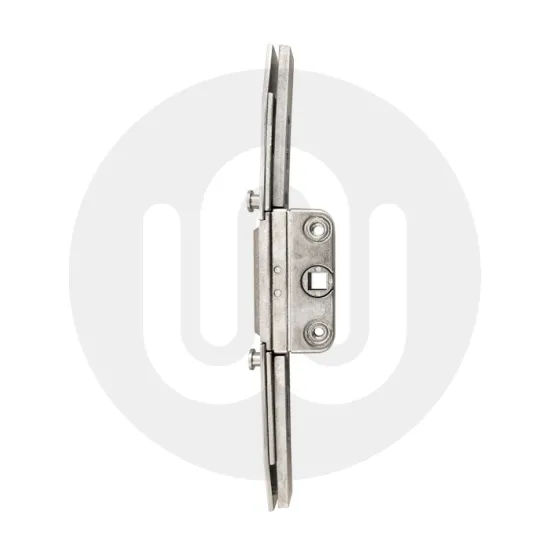

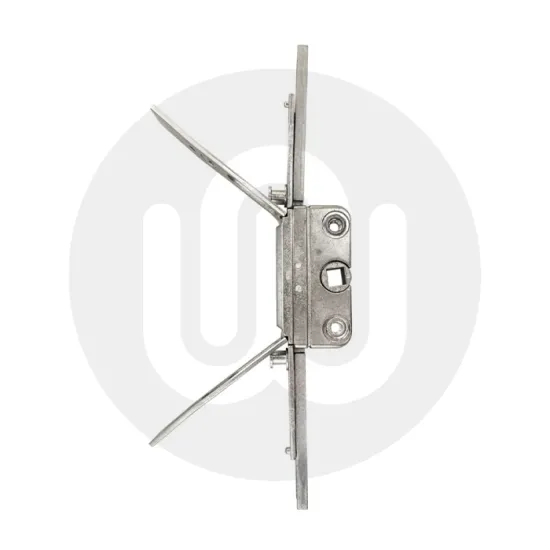

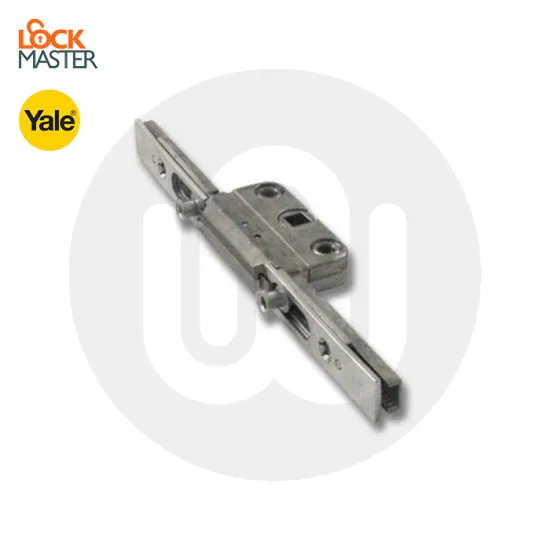

Yale / Lockmaster Standard Croppable Shootbolt Gearbox

Yale / Lockmaster croppable gearboxes offer a low stock solution for shoot bolt systems by using only 4 rod sizes that a fabricator can cut down to the required rebate size.

Key features:

-Low stock holding using 4 rod sizes from the Yale shoot bolt range

-Achieve sash sizes from 326mm to 1420mm

-Non-handed

-Gearbox also compatible with Yale flush & French casement extensions

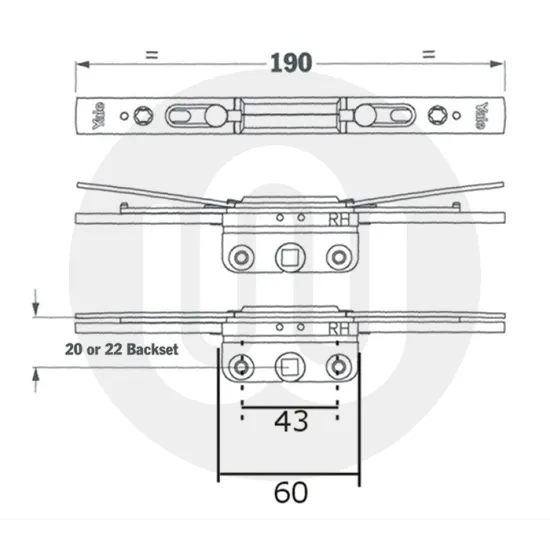

Dimensions:

-20 or 22mm backset

-7.7 mushroom cam heights

Guarantees & accreditations

-Corrosion resistance to EN 1670:2007 Grade 4 240hrs

-Endurance tested to BS EN 13156-4 Grade 5

-Designed to meet PAS 24:2016 requirements

-Secured by Design approved

-BBA Certification
