GU Uni Jet D Tilt & Turn Full System (Face Fix)

GU Uni Jet D Tilt & Turn Full System (Face Fix)

The unpre­ten­tious elegance of the UNI-JET D hinge side makes it an ideal match for the slimline pro­file design of aluminium win­dows.
As it can also be used equally effec­tively for PVC win­dows, this signi­fi­cantly reduces sto­rage overheads.

Design bene­fits
Cohesive elegant design
High-quality sur­face available from stock in white and silver, addi­tional colours available on request
Cover caps available in a large selec­tion of colours

Easy handling
Assembly-fri­endly pin safety guard in the stay-bea­ring
Con­ve­nient three-dimen­sional hard­ware adjust­ment
Stay-bea­ring pin can be con­ve­ni­ently removed using the GU adjust­ment tool or a stan­dard slotted scr­ewdriver

Pos­sible app­li­ca­tions
A barrier-free ver­sion is available with higher posi­tioned bea­rings for balcony and patio doors
Ope­ning angle up to 180°

Technical Details:
Axis: 13mm only
Sash overlap: 18/20mm
Tested hard­ware load-bea­ring capacity: 130kg
Max. sash rebate width: 1600mm
Max. sash rebate height: 2800mm

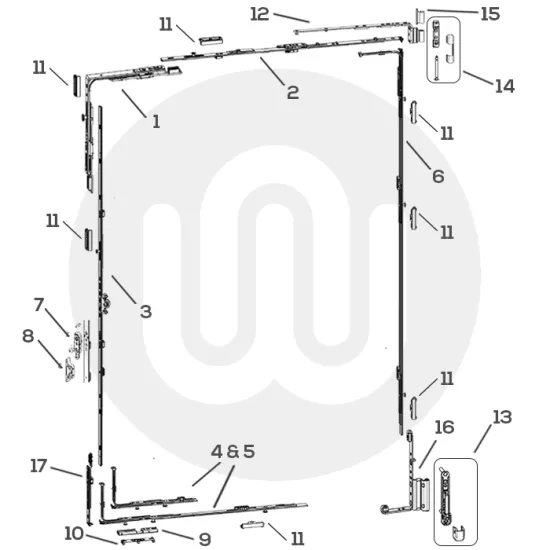

If you require a specific part of this system, please find the number on image 2 and follow the corresponding link below:

1. Top Corner Drive: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Top-Corner-Drive.html
2. Stay Arm Connecting Plate: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Stay-Arm-Connecting-Plate.html
2b. Stay Arm Connecting Plate Extension: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Stay-Arm-Connecting-Plate-Extension.html
3. Drive Gear:  https://store.northwesthardware.co.uk/gu-drive-gear.html
4/5. Horizontal Centre Lock: https://store.northwesthardware.co.uk/GU-UniJet-Horizontal-Centre-Lock.html
6. Vertical Centre Lock: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Vertical-Centre-Lock.html
7. Sash Positioner
8. Wedge Plate
9. Locking Plate
10. Packer to Suit
11. Casement Striker: https://store.northwesthardware.co.uk/GU-Roller-Keeps.html
12. Stay Arm: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Stay-Arm.html
13. Rebated Bottom Corner Bearing & Cover: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Rebated-Bottom-Corner-Bearing-Cover.html
14. Stay arm Bearing Kit: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Stay-Arm-Bearing-Kit.html
15. Stay Hinge & Cover: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Stay-Hinge-Cover.html
16. Rebated Bottom Corner Hinge & Cover: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Rebated-Bottom-Corner-Hinge-Cover.html
17. Tilt Foot / Extension Piece: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/GU-UniJet-Extension-Piece.html
