Ingenious 1044 Heritage 3 Latch Composite Door Lock

Ingenious 1044 Heritage 3 Latch Composite Door Lock

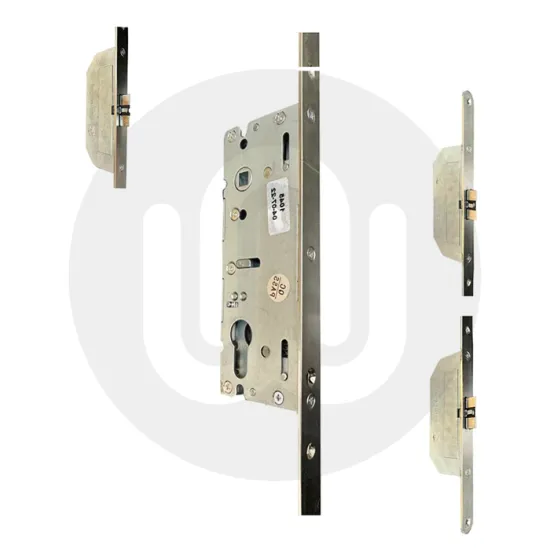

This is the Ingenious 1044 autofire composite timber multipoint door lock. Heritage type door lock means that the gearbox is raised so the door handle and key lock is at eye level to replicate a traditional timber door look.

This door lock has 3 number deadbolt latches and a 20mm faceplate with radius ends. The Ingenious door lock is widely used on modern composite door systems and can be found on both residential doors and French doors.

The Ingenious autofire has been designed to auto lock into the outerframe as the door is closed ensuring it is secure and tightly sealed against the gaskets

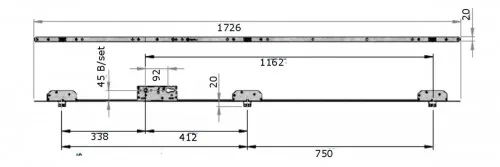

-Backset: 45mm
-Locking Points: 3 latch dead bolts
-Faceplate: 20mm wide with radius ends
-Overall Length: 1726
-Heritage door lock with cearbox raised to give traditional timber door look
