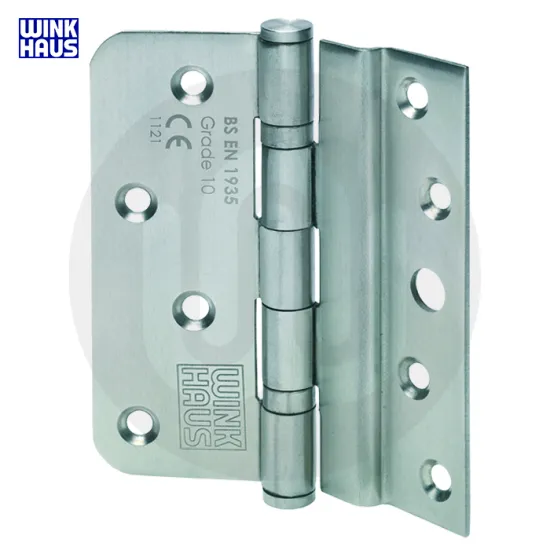

Winkhaus Composite Door Hinge

Winkhaus Composite Door Hinge

- Available in silver only and 10mm step
- Austenitic stainless steel grade SS202.
- High corrosion resistance, greater than EN1670 grade 4.
- Designed to automatically ensure 4mm frame/sash gap.
- No maintenance required.
- 2 sealed for life stainless steel low friction roller bearings enhance durability.
- Slim barrel design complete with cosmetic security ferrules.
- Countersunk to suit No 10 woodscrews or M5 m/c screws.
- Surpass the cyclic endurance requirements of PAS 023.
- Surpass the security requirements of PAS 024.
- Tested for use with FD30 fire doors.
- Typical sash weight 50kg (3 x hinges).
- Pre-drilled for 9mm frame fixing.
- Stepped to minimise frame machining.
- Eco hinge with 10mm step to ensure positive location when fitted on Ecoframe™.
- Suitable for inward and outward opening doors.
