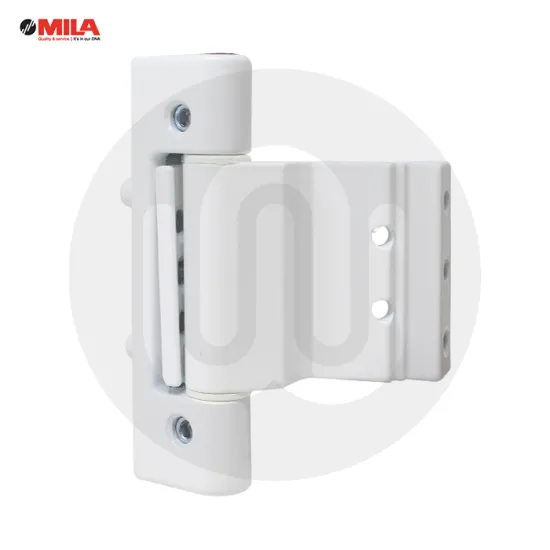

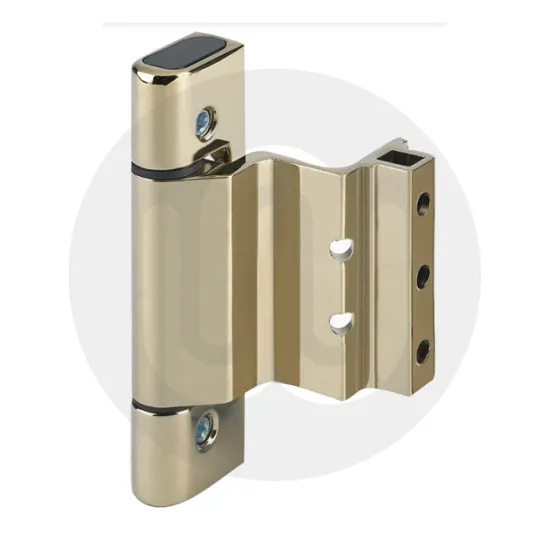

Mila iDeal Rebated Butt Hinge

Mila iDeal Rebated Butt Hinge

The rebated part of these hinges secures directly into the sash Eurogroove which is ideal on profile systems whose chamfer feature makes using standard butt hinges difficult.

-Rebated butt hinge

-Rebated version 13mm eurogrove positions

-Fully adjustable for ease of installation and to ensure weather tightness

-Lateral adjustment +/-2mm

-Vertical adjustment +4mm

-Adjustment can be achieved without dismounting door leaf

-Steel hinge pin enhances security

-8mm diameter bosses provide additional stability

-Tested to 50,000 cycles underload

-Salt spray testing - 480 hours on powder coated versions, 240 hours on plated versions

-Maximum sash weight 80kg with (3 hinges)

-Simple to fit
