Suitable for PVCu Windows with 13mm Eurogroove Axis

Max sash weight: 130Kg

Sash rebate width range (SRW): 290-1600mm

Sash rebate height range (SRH): 310-2400mm

Max SRH:SRW ratio: 1:1.5

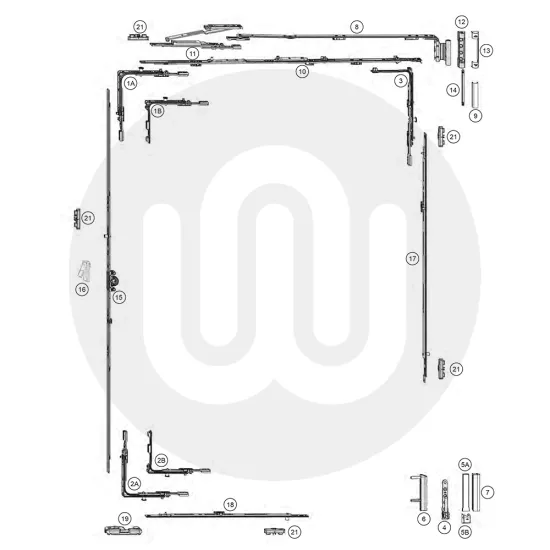

If you require a specific part of this system, please find the number on image 2 and follow the corresponding link below:

1. Top Corner Drive: https://store.northwesthardware.co.uk/Roto-Top-Corner-Drive.html
2. Bottom Corner Drive NT: https://store.northwesthardware.co.uk/Roto-Bottom-Corner-Drive.html
3. Centre Lock/Stay Guide Connector: https://store.northwesthardware.co.uk/Roto-Centre-Lock-Stay-Guide-Connector.html
4. Pivot Rest: Coming soon
5. Pivot Rest Cover: Coming soon
6. Corner Hinge: Coming soon
7. Corner Hinge Cover: Coming soon
8. Stay Arm: Coming soon
9. Stay Arm Cover: Coming soon
10. Stay Guide: Coming soon
11. Additional Stay: https://store.northwesthardware.co.uk/Roto-Additional-Stay.html
12. Stay Bearing: Coming soon
13. Stay Bearing Cover: Coming soon
14. Stay Bearing Pin: Coming soon
15. 15mm BS Variable Handle Height Drive Gear: https://store.northwesthardware.co.uk/roto-drive-gear.html
16. Anti-Mishandling Device
17. Vertical Centre Lock: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Roto-Vertical-Centre-Lock.html
18. Horizontal Centre Lock: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Roto-Horizontal-Centre-Lock.html
19. TBT Striker
20. Connector Plate
21. Casement Striker: https://store.northwesthardware.co.uk/pair-of-retrofit-rollermushroom-keep.html
