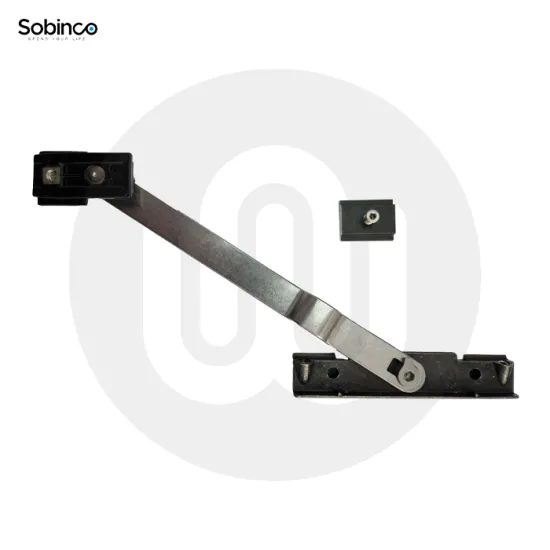

Sobinco 35140-901, -902 and -903 Chrono Window Stay (Visible Hinges)

Sobinco 35140-901, -902 and -903 Chrono Window Stay (Visible Hinges)

-In combination with visible Chrono hinges and Chrono Invision Pro hinges.
-With Chrono Invision Go hinges if the opening angle must be restricted to less than 90°.
-Restricts the opening angle of the window in turn position.
-Should be used for safety purposes or where the opening arc may be obstructed.
-The position of the stay will dictate the opening angle of the window.

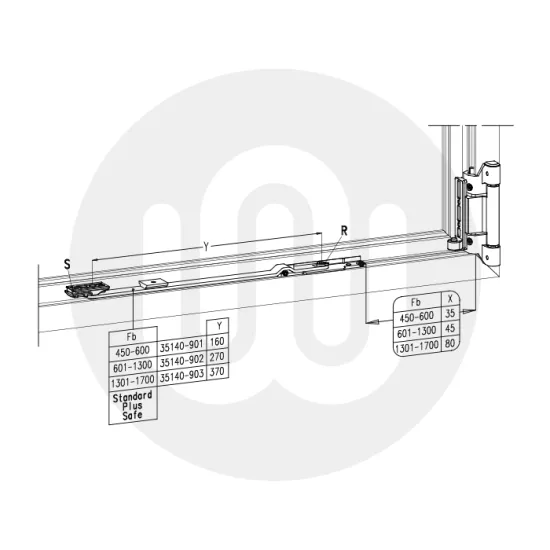

-The window stay is detachable by turning rivet R with a 4 mm hexagon key.
-Provided with an incorporated adjustable friction by tightening the screw S.
-Important! Tighten the clamping screws (grub screws 2.5 mm) of the frame part with a force of 1.75 Nm +/-0.25 Nm.

Chrono visible hinges

-Optional and is only used as limitation of the opening angle, never as stop
