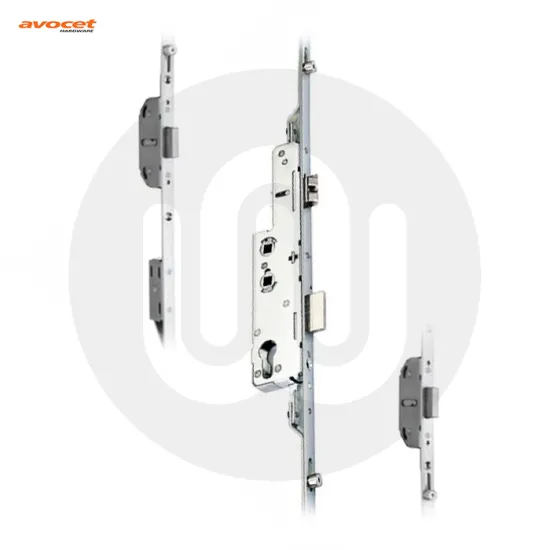

Avocet Pioneer 3 Deadbolt 4 Roller

Avocet Pioneer 3 Deadbolt 4 Roller

- Trivalent silver finish
- Four roller cams for effortless sealing
- Suitable for lever-lever and lever-pad applications
- Top, bottom and centre deadbolts for greater security
- Reversible centre latch to suit all applications
- Latch can be changed from the faceplate without removing unit from the profile
- 20mm deadbolt throw
- Shootbolt capability
- 35mm backset suits the majority of profiles

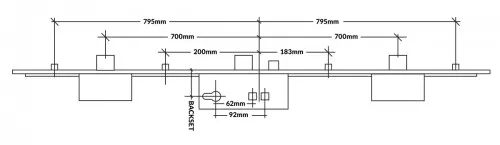

Technical Details:
Double Spindle 92/62mm
Backset: 35mm
Distance between deadbolts: 1400mm
Distance between rollers: 383mm (inner) / 1590mm (outer)
Faceplate: 16mm

DLPN353D4RT
