Coldseal 4 Hook 4 Roller
- SKU: C4H4R
Available Options
Coldseal 4 Hook 4 Roller - OBSOLETE
This item is now OBSOLETE, please follow the links below for suitable replacements:
Replacement Centre Cases:
Mila Genuine 7000 Series Centre Case - Single Spindle (35mm Backset)
https://store.
Mila Style Repair Centre Case - Double Spindle
https://store.
Full Lock Replacement Solutions:
Mila Old Style 3PLACEIT Lock - 2 Deadbolt
https://store.
Simplefit One Lock 2 Deadbolt 2 Roller
https://store.

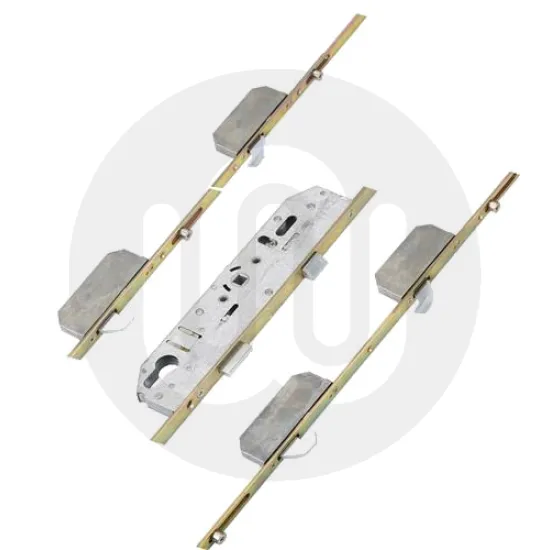

A 4 hook, 4 roller lock that was used predominately on PVCu doors made by Coldseal until the mid 2000's.
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Undo the screw in the side of the lock case to remove the latch, reverse, reinsert and replace the screw.
Technical Details:
Centres: 95mm
Case height: 234mm
Case Depth: Backset + 17.5mm
Overall length: 1951mm
Distance between outer rollers: 1410mm
Distance between inner rollers: 465mm
Distance between outer hooks: 1265mm
Distance between inner hooks: 605mm
16mm Faceplate
92mm PZ
