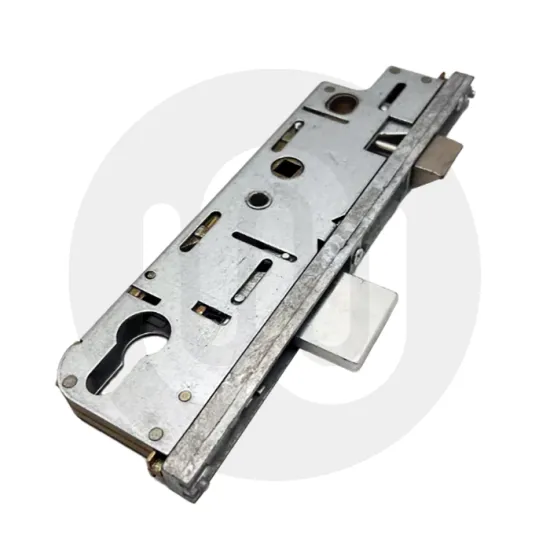

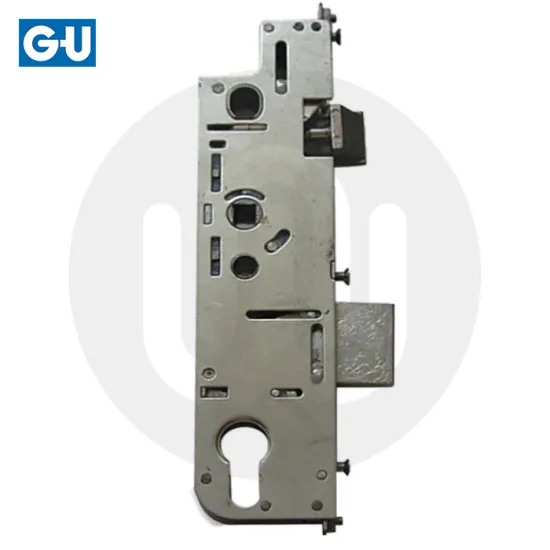

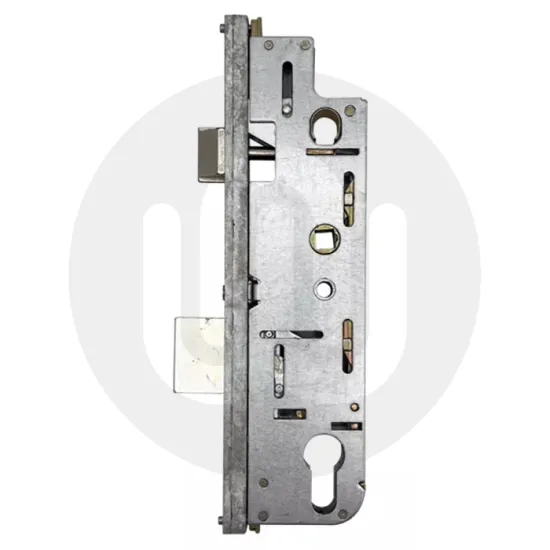

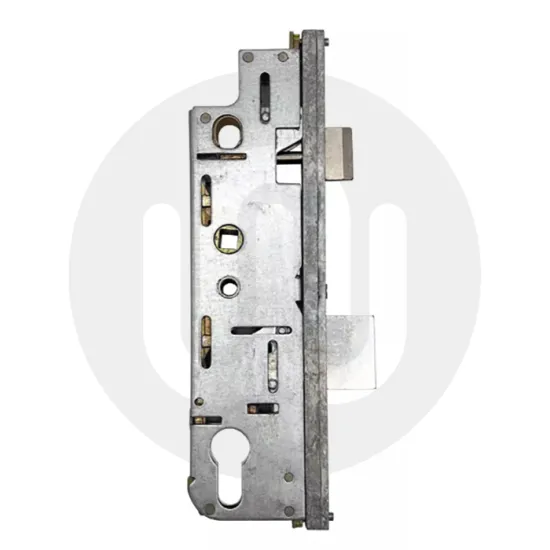

GU Old Style Centre Case

These copy gearboxes are for the original GU Europa locks and are available in a 30mm(28mm when used with a cranked faceplate) 35mm and 45mm backsets.

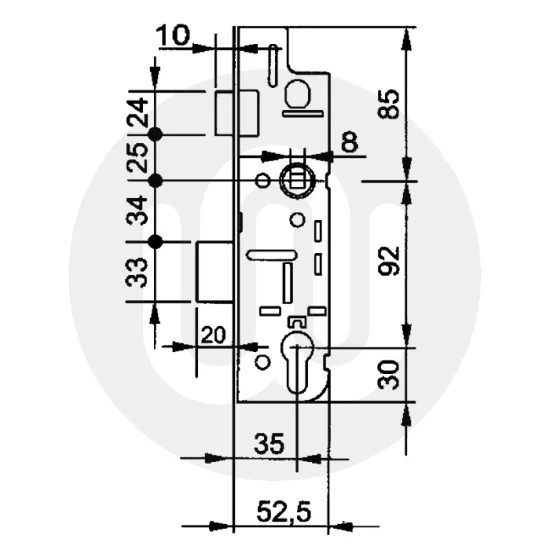

GU multipoint lock gearboxes feature a latch and deadbolt and measure 208mm high (excluding the fixing lugs) by the backset + 19mm wide.

The latch is 32mm high, the deadbolt measures 35mm high and there is a 54mm gap from the bottom of the latch to the top of the deadbolt.

GU gearboxes are fixed to their faceplates with 3 screws. The distance from the top to the middle screw is 108mm, while the middle screw to the bottom screw is 92mm.

The follower is 8mm with the surround being thicker on the 30mm and thinner on the 35/45mm.

Always allow 2mm if measuring your backset with the gearbox removed from the faceplate.

These gearboxes are only available in a lift lever function with the split spindle and fast locking functions now obsolete, should you have either of these functions then a new style full length lock is required.

We stock a range of associated products for GU Europa gearboxes, including, keeps, spindles, handles, and accessories.

Operation: Lift lever

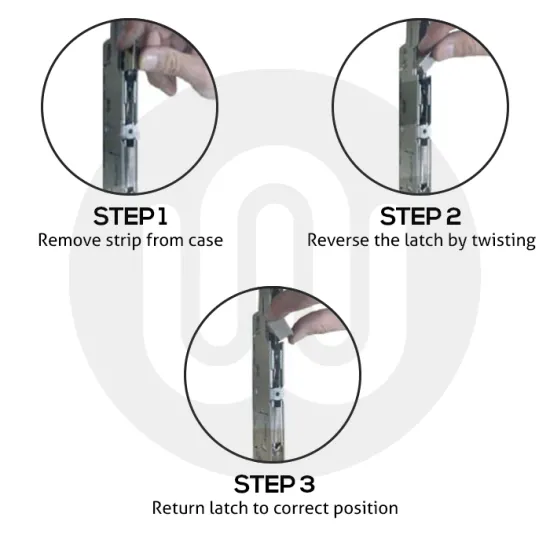

Latch reversal: Twist latch into the desired position

Technical Details:

Overall Height: 208mm

Case Depth: Backset + 19mm

PZ: 92mm

Please note: Northwest Hardware recommend that you replace the full multipoint lock to minimise the possibility of future complications associated with fitting a new case on to a 10+ year old lock strip. However, many customers have successfully fitted this part without any known future issues.
