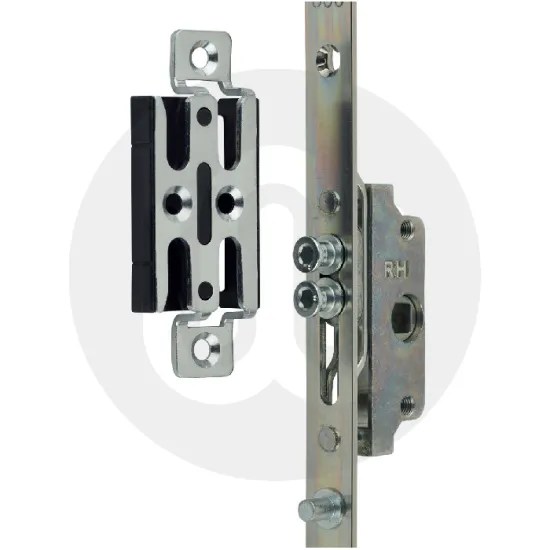

ERA Double Cam Window Lock Mushroom / Espag Keeps

ERA Double Cam Window Lock Mushroom / Espag Keeps

Sold in Pairs.

Available from 230mm up to 1200mm with 20mm & 22mm backset
Tested in excess of PAS 24 with a central anti-lift pin providing additional security to prevent jemmying attacks on the window.

-The combination of unidirectional double cams and a super keep, maximises security
-No need for additional shootbolts
-Up to three sets of double locking cams, provide strength and security along the whole length of the window
-Double Cam, requires no complicated routing. The non-croppable bar is fitted with 8mm double cams that can be adjusted onsite
-A steel top plate, composite underbelly and for added strength, the wrap around design provides additional security
-Minimal components mean fabrication is quicker and clean lines are retained without compromising security

Details:

Unidirectional ‘Double Locking’ Cams
-Up to three sets of high security double locking cams for security along the whole length of the window

Central Anti-lift Pin:
-Provides additional security to prevent jemmying attacks on the window
-Aids bar alignment to keep for ease of fabrication
-Anti-lift pin blocks available in 13mm and 17mm heights

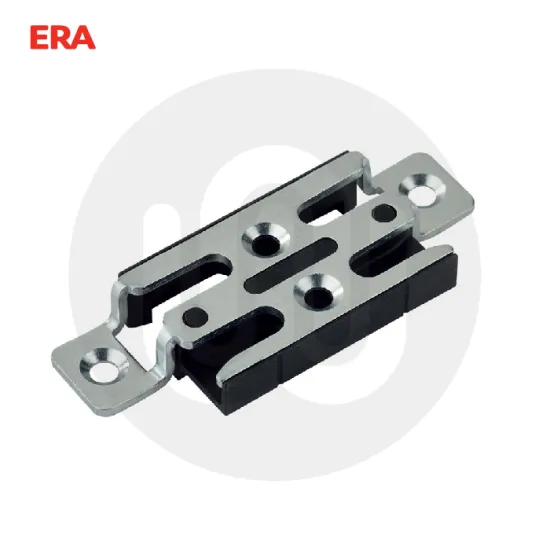

Uniquely designed super keep
- Has a 2mm steel top plate and composite underbelly
- For added strength, the wrap around design provides additional security via 4-point fixing at each keep location
