ERA Duraflex Challenger 3D Euro Rebate Door Hinge Angled Feature

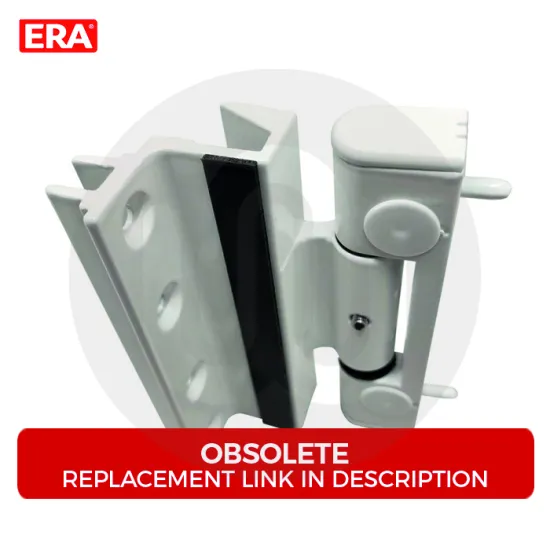

ERA Duraflex Challenger 3D Euro Rebate Door Hinge Angled Feature - OBSOLETE

This item is now OBSOLETE, please follow the link for a suitable replacement:

Simplefit Adjustable Rebated Butt Hinge 9-16mm All-In-One

https://store.northwesthardware.co.uk/adjustable-rebated-butt-hinges.html

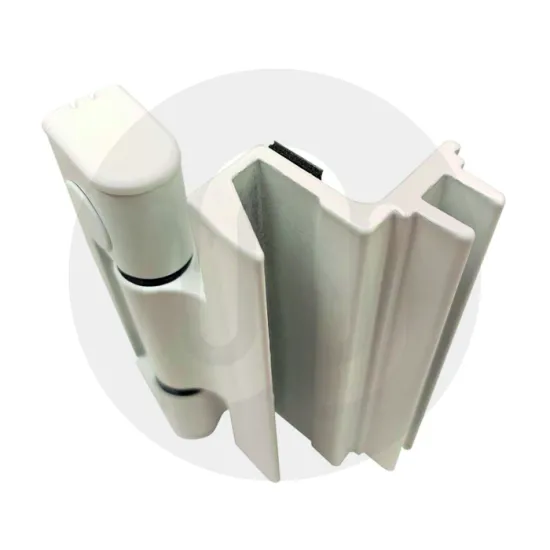

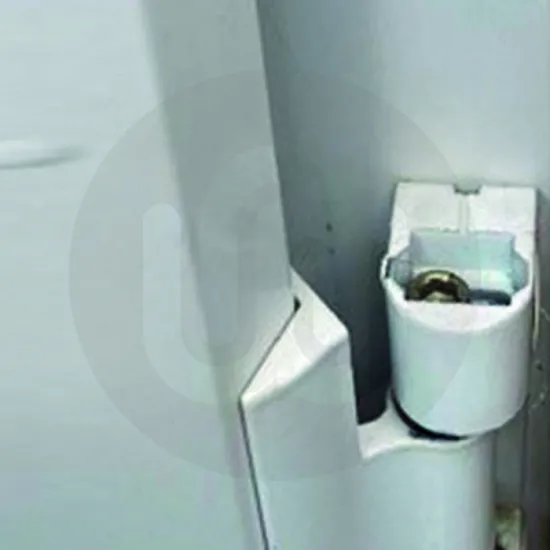

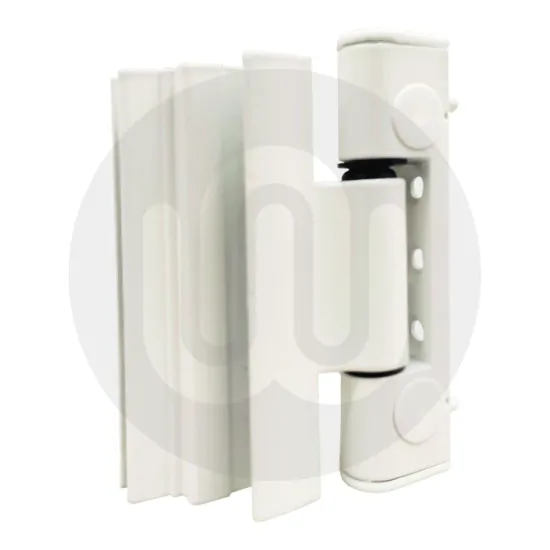

This is the ERA Challenger 3D Angled Sloped and Chamfered Feature Shape Profile Door Hinge. It is made to suit the specific Duraflex sloping shape door profile. It is shaped to wrap around the side of the opening door sash and attach to create a slimmer aesthetic finish. The door hinge has been built to fit the contours of the Duraflex profile and is a specialist engineered hinge for this purpose only.

This hinge is universal so when you assemble them you simply spin them round to fit either the left or right handing of the door.

This is a white colour only euro door hinge that fits via sash euro grove and folds around the door sash to suit. The hinge provides some adjustment via eccentric cams and it suits double glazed Duraflex shaped profile Upvc doors.

What You Will Receive:

1 X Hinge

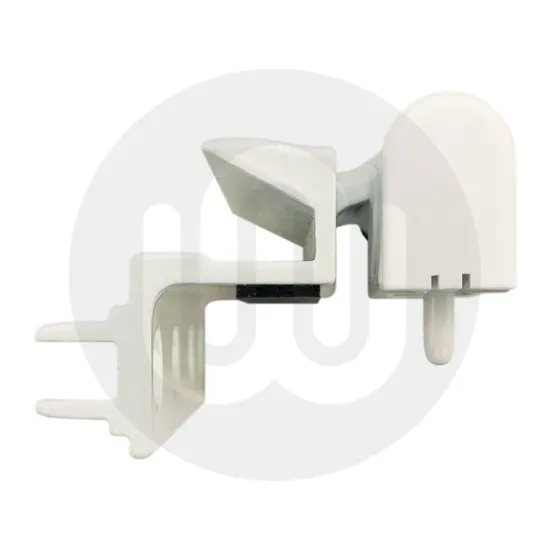

6 X Cover caps

Technical Details:

Overall Length: 105mm approximately

Overall Width: 16mm

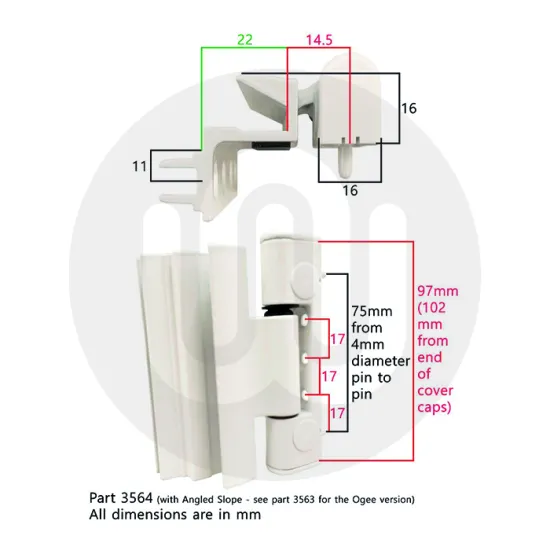

Adjustable: Yes. See detailed dimension diagram for more information.

Colour: White only available
