Giesse 04093 Two-Way Mechanism for Ghibo Out Outward Opening

Giesse 04093 Two-Way Mechanism for Ghibo Out Outward Opening

Technical Characteristics

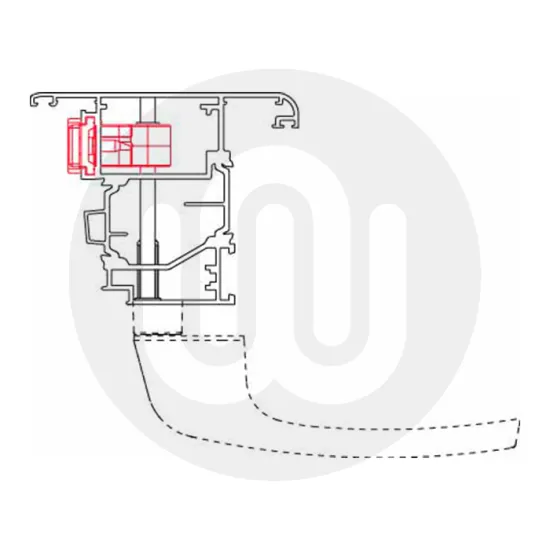

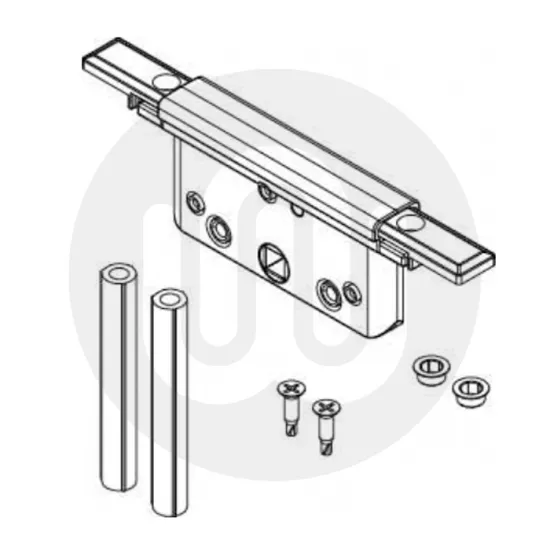

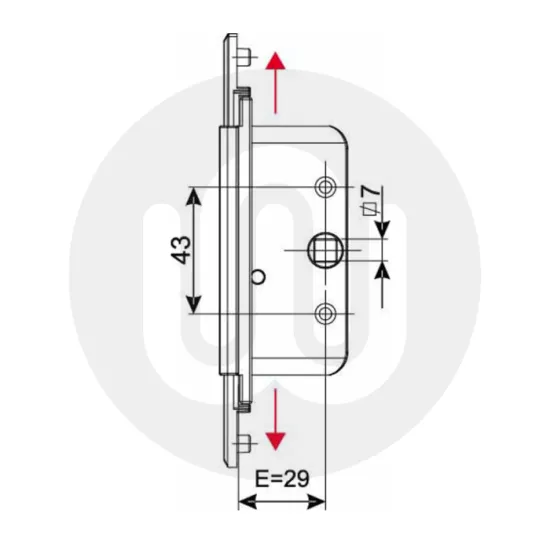

Ideal for outward-opening side-hung windows (Side Hung, shutters, etc.). These devices are reversible and are ready to be fitted on either right or left sashes. The long two-way stroke of the hardware of 18 mm thus allows plenty of overlap of the fastening components. It is recommended to use these mechanisms in combination with fastening bolt tips type art. 02114K and sill strikers type art. 02159. The mechanisms are designed to accommodate a 7 mm square pin and to be combined with all the window handles made by GIESSE, both of aluminium and brass, with a 43 mm fixing C/C distance. The product is secured to the sash profile with the two screws supplied. The two polyamide tubes supplied are to be placed inside the tubular profile and they perform the function of a spacer between the base of the window handle and the mechanism, allowing the mechanism to maintain perfect alignment of the parts.

Functions

Ghibo out is a two-way device, to be housed in the tubular profile that, via a window handle, moves the rods and locking points of outward-opening side-hung windows.

Materials

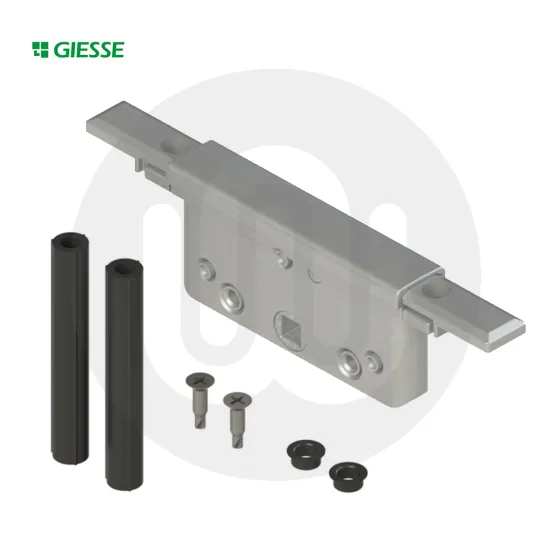

Case and connection devices to transmit motion in silver painted zamak Rotor in zinc plated zamak Tubes and bushings of black polyamide Stainless steel fixing screws
