Giesse Carrera 2 Adjustable Rollers – Sold and Priced in Pairs

Giesse Carrera 2 Adjustable Rollers – Sold and Priced in Pairs

Functions

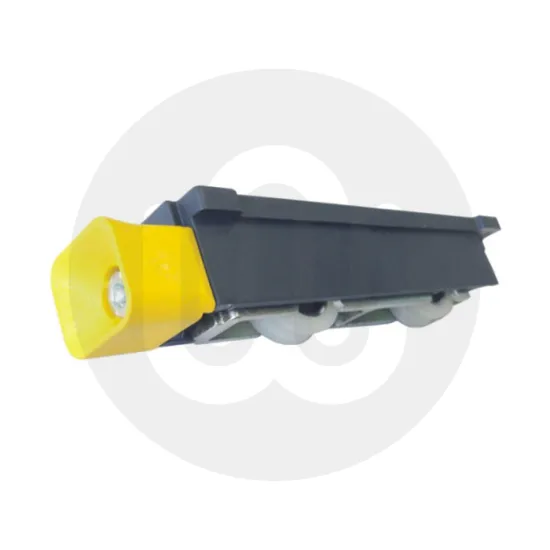

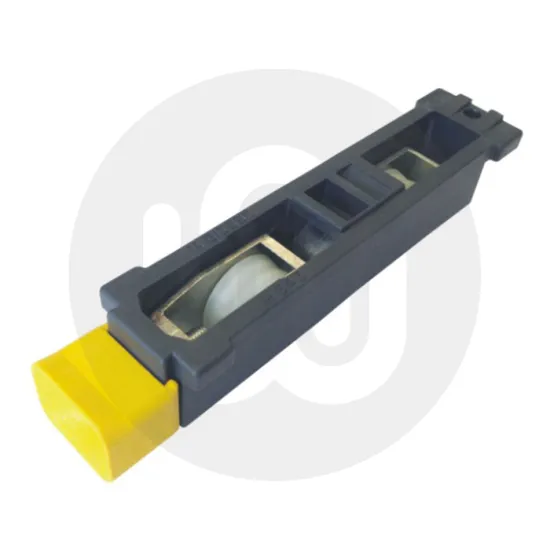

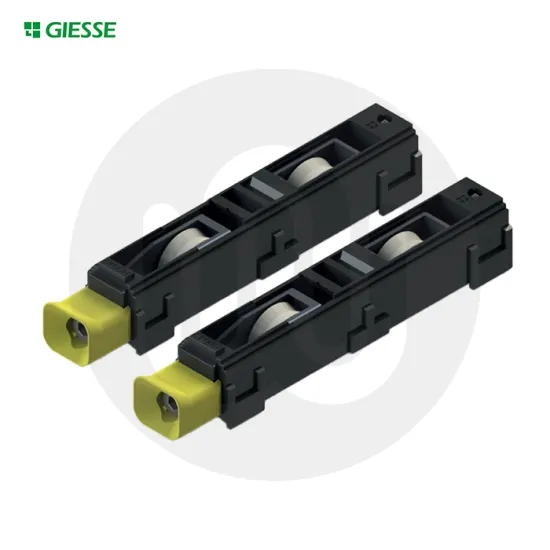

Adjustable two-wheel roller for aluminum windows and doors.

Technical Characteristics

-The carriage is fixed with a contrasting dowel, avoiding the need for machining specifications.

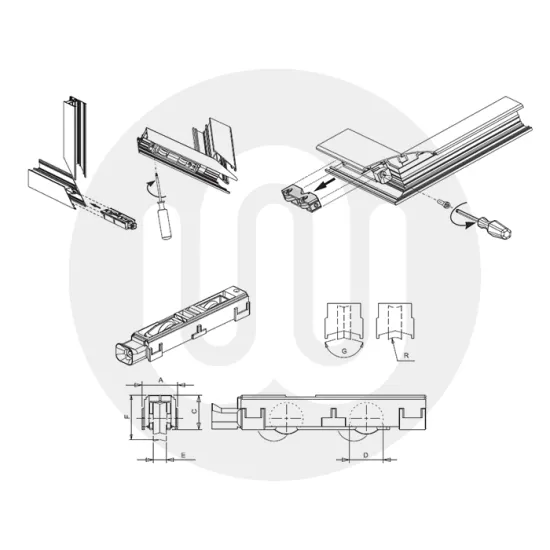

-Micrometrically adjustable, it allows you to move the door vertically in a total range of 4 mm on average.

-The adjustment is easy as the adjusting screw is inserted inside the yellow centering detail which facilitates insertion of the key.

-The adjustment can also be made with the door assembled and already installed.

-The wheels are normally mounted on ball or needle bearings depending on the model and can be removed together with the relative support without having to dismantle the cart.

-The bearing wheels are shielded to keep the lubricating grease at the inside them.

Materials

-Gray polyamide support

-Key centering detail in yellow polyamide

-Silver Plus zamak wheel support

-Wheel with steel bearing and cover neutral reinforced polyamide

-Stainless steel fixing screw and adjusting screw
