KFV AS2300 W20 Stable Door Lock

KFV AS2300/W20 Stable Door Lock

Special Order Item

Special order items may not be returned and, once ordered, cannot be cancelled, or amended

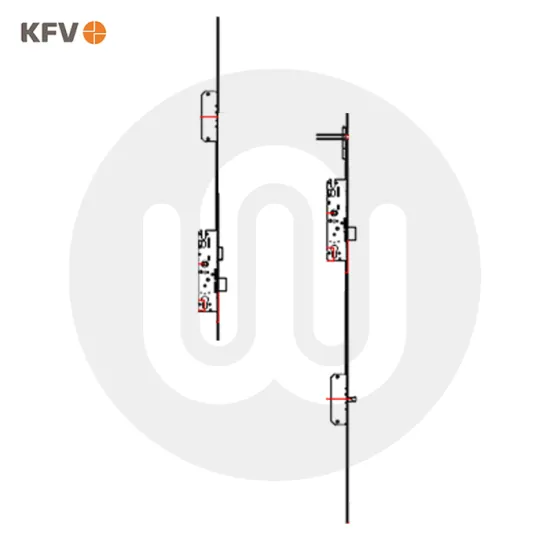

This is the key wind operation version of the KFV 2 pin multipoint lock for stable doors.

-Backset: 35mm

-Centres: 92mm

-Operation: Key wind.

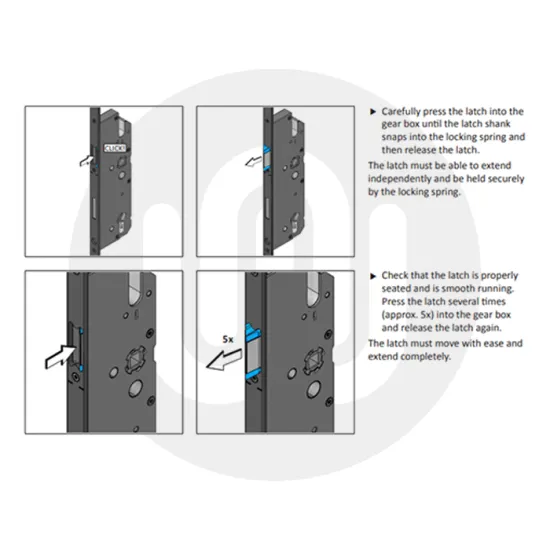

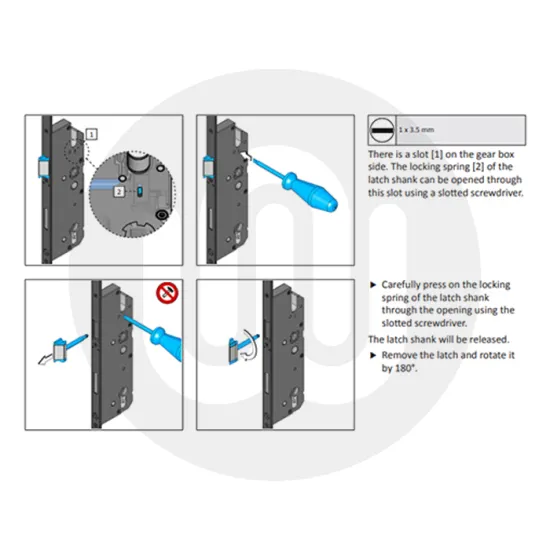

Latch reversal: Depending on date of manufacture either:

• Push the serrated button at the top of the lock case down while simultaneously pulling out the latch. Remove to reverse and reinsert.

• Push in the latch and undo the screw in the back of the lockcase. Remove the latch and reverse. Push in the latch and undo the screw in the side of lockcase to remove the latch. reverse and reinsert.

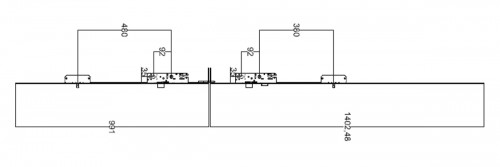

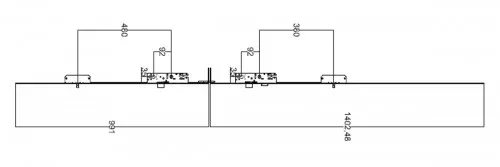

Technical Details:

-Case height: 210mm

-Case depth: Backset + 18mm

-Length: Top - 1120mm

-Length: Bottom - 990mm

-Top Pin To Spindle - 385mm

-Bottom pin to spindle - 490mm
-Faceplate - 16mm
