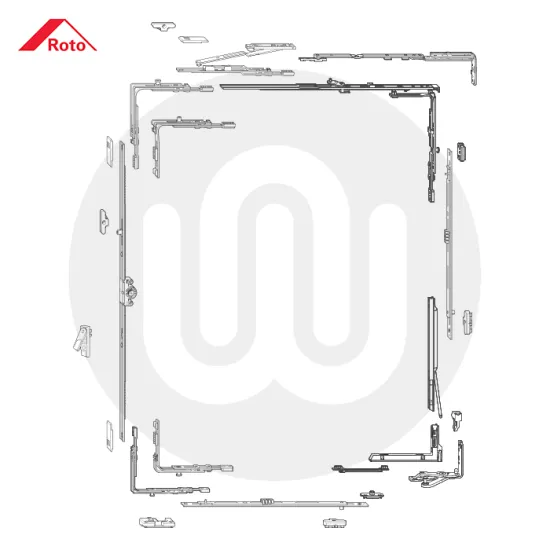

Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber

Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber
Based on 0 reviews. - Write a review
£142.85
Inc. TAX: £171.42
  • SKU: RODEIICFTBT
Roto

Available Options

Add to Cart
Ask Question
Add to Wish List Compare this Product

Roto Designo II Full Tilt & Turn System 13mm (Concealed Fix) - PVC & Timber

Suitable for PVCu and Timber Windows with 13mm Eurogroove Axis

Max sash weight: 100Kg/150Kg (Sashes over 100Kg must be fitted with rear load transfer)

Sash rebate width range (SRW): 360-1400mm
Sash rebate height range (SRH): 310-2600mm
Max SRH:SRW ratio: 1:1.5

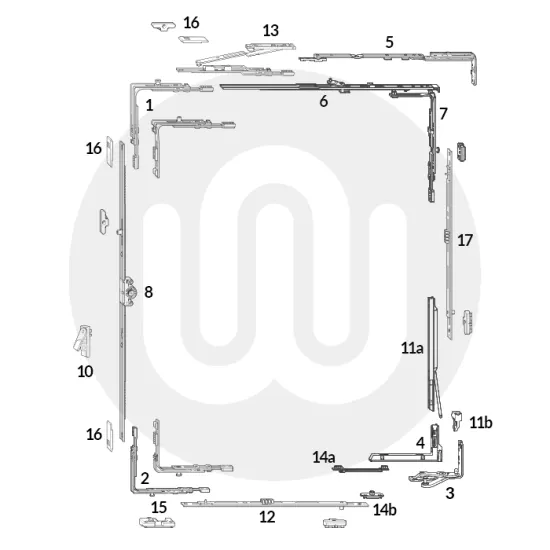

If you require a specific part of this system, please find the number on image 2 and follow the corresponding link below:

1. Top Corner Drive: https://store.northwesthardware.co.uk/Roto-Top-Corner-Drive.html
2. Bottom Corner Drive NT: https://store.northwesthardware.co.uk/Roto-Top-Corner-Drive.html (Select Standard option)
3. Pivot Rest - https://store.northwesthardware.co.uk/Roto-Designo-II-Pivot-Rest-Rebate-Depth-24mm.html
4. Corner Hinge - https://store.northwesthardware.co.uk/Roto-Designo-II-Corner-Hinge.html
5. Stay Arm - https://store.northwesthardware.co.uk/Stay-Arm.html
6. Stay Guide - https://store.northwesthardware.co.uk/Stay-Guide.html
7. Centre Lock/Stay Guide Connector - coming soon
8. 15mm BS Variable Handle Height Drive Gear: https://store.northwesthardware.co.uk/roto-drive-gear.html
9. Handle Side Centre Lock - coming soon
10. Anti-Mishandling Device - coming soon
11a. Load Transfer Sash Component - coming soon
11b. Load Transfer Frame Component - coming soon
12. Horizontal Centre Lock: https://store.northwesthardware.co.uk/Roto-Horizontal-Centre-Lock.html
13. Additional Stay: https://store.northwesthardware.co.uk/Roto-Additional-Stay.html
14a. Turn Restrictor Sash Component
14b. Turn Restrictor Frame Component
15. TBT Striker
16. Connector Plate
17. Vertical Centre Lock
