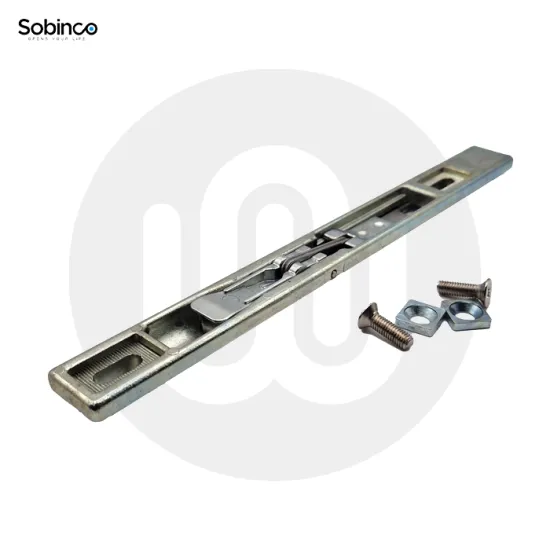

Sobinco 756 Door Bolt

Sobinco 756 Door Bolt

Door bolt with lever operation for sections with groove width 14 mm.
Advantage: the bolt will not disengage through vibration or impact.

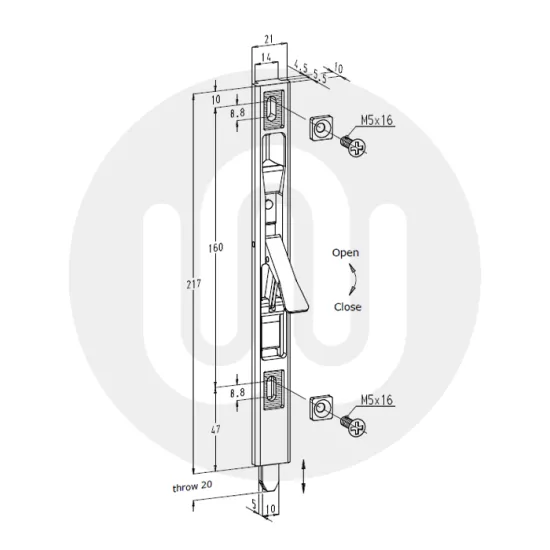

The door bolt is vertically adjustable by means of serrated plates. The adjustment range is 8.8 mm.

Materials and finish:
-Guide piece and plates: zinc alloy, zinc plated.
-Bolt: stainless steel.
-Mechanism: stainless steel and zinc alloy.
-Door bolt n° 86101 is black galvanised.

Simple installation:
-Put the bolt into the section groove.
-screw the bolt to the section together with the serrated plates.
