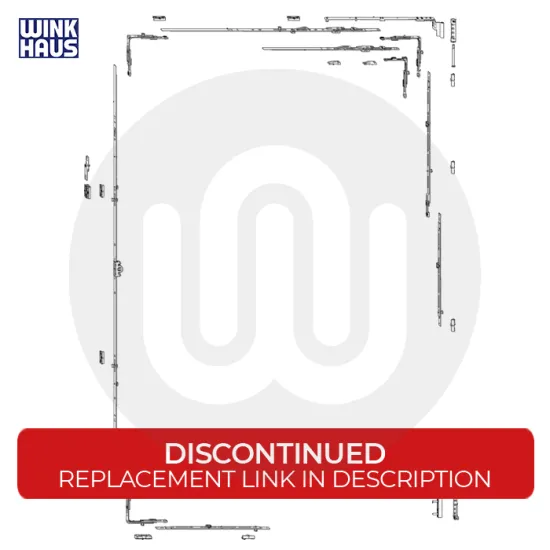

Winkhaus activPilot Concept Tilt & Turn Full System (Face Fix)

Winkhaus activPilot Concept Tilt & Turn Full System (Face Fix) - DISCONTINUED

This item is now DISCONTINUED. Suggested replacement is the Simplefit Face Fix Tilt & Turn Kit:
 https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Simplefit-Face-Fix-Tilt-Turn-Kit.html

For uPVC tilt and turn windows with groove centre position 9 or 13 mm)
Sash to frame clearance: 12 mm (usage range of 9.8 to 14 mm)
Overlap: 18 or 20 /21 mm
Wide range of individual Solutions.
Surface-mounted hinge side with symmetrical drilling pattern for corner and shear hinges.
Suitable for almost all profile systems thanks to the wide variety of frame part series.

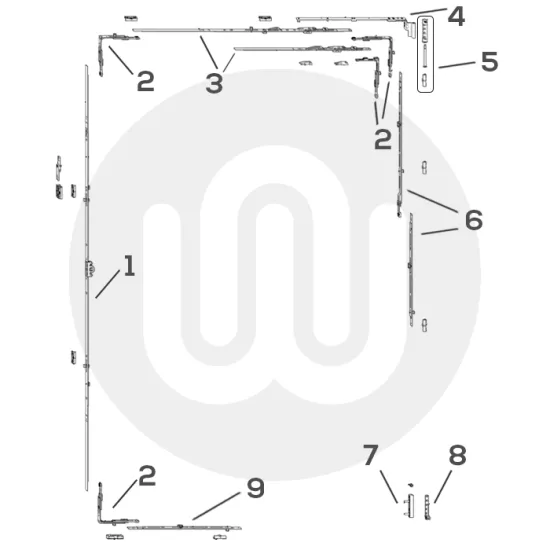

If you require a specific part of this system, please find the number on image 2 and follow the corresponding link below:

2. Corner Drives: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-Autopilot-Top-Corner-Drive.html

3. Top Rod: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Top-Rod.html

4. Top Shear: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Top-Shear.html

5. Top Hinge: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Top-Hinge.html

6. Vertical Interlocking Rods: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Interlocking-Rods.html

7. Bottom Sash Hinge: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Bottom-Sash-Hinge.html

8. Bottom Frame Hinge: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Bottom-Frame-Hinge.html

9. Horizontal Interlocking Rods: https://store.northwesthardware.co.uk/windows/tilt-and-turn-hardware/Winkhaus-activPilot-Concept-Horizontal-Interlocking-Rods.html
