WinkHaus Scorpion XL3 with Latch & 3 Hooks

This product is now OBSOLETE.
There's no replacement for the full lock at the moment, but if the problem is with the centre case you can replace this section only with the product below:
https://store.northwesthardware.co.uk/winkhaus-scorpion-centre-case.html

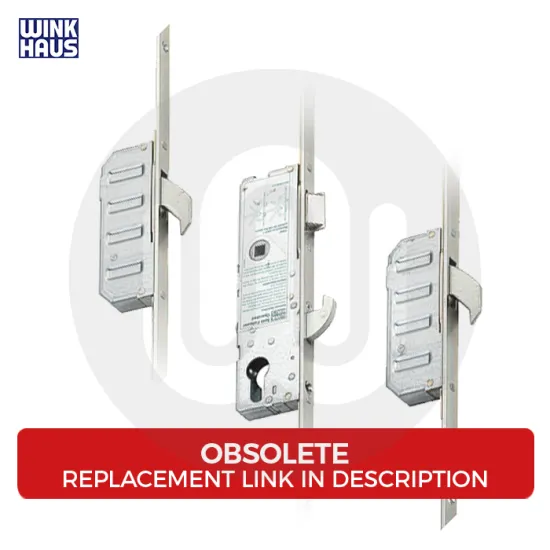

This WinkHaus multipoint lock has a latch and a central hook, and 2 hook locking points.
It's often fitted to aluminium doors.

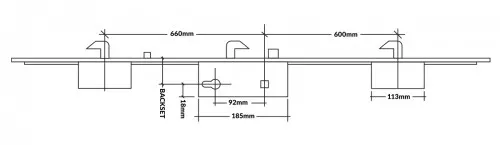

Technical Details:
Backset: 35mm
PZ: 92mm
Distance between hooks: 1260mm
Faceplate: 16mm square ends
Split Spindle 8mm
Overall Length: 2100mm

Latch Reversal:

Push the latch in and you will see a screw appearing in the back of the lockcase. Undo this screw to remove the latch. Reverse and reinsert the latch and replace screw.

Click to enlarge
