WinkHaus AV2+ 2 Hook Semi-Automatic Lock

  • Product Code: WHAV2+DB

* Faceplate:

* Select Size:

* Select Product:

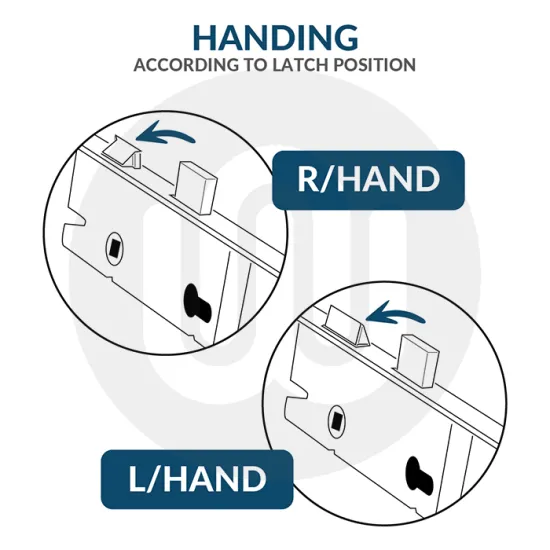

* Handing:

* Quantity:

£159.85

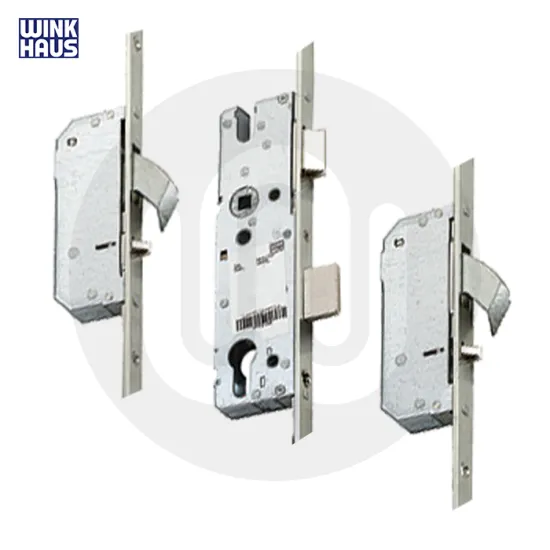

WinkHaus AV2+ 2 Hook Semi-Automatic Lock

Further information may be required by our sales team upon receiving your order.
This is a special order item - please note that it cannot be returned and it will need more time for delivery.

The Wink Haus AV2+ is an automatic system that requires no wiring or power supply. It has however the optional capability of becoming an electronic access controlled locking system*.


Using an Automatic AV2+ Mechanical lock, which operates as a slam lock as soon as the door is closed, also reduces the risk of a ‘follow-on’ attack or ‘tailgating‘ as it is sometimes known. Closing the door behind you as soon as you enter a dwelling gives immediate full security and reduces the risk of anyone trying to enter immediately behind you. It is ideal for the elderly and infirm who may have difficulites lifting handle levers to throw multi-point locks, building of multi-occupancy where some tenants forget to actually throw the hook/deadbolt. It slams shut to give great peace of mind.


Features:

1. 25mm throw tensile steel hooks

High security nickel plated steel hooks fully penetrate the keep rail and help prevent forcing apart of the sash and frame.

2. Hook clearance adjustment in the keeps

With ± 2mm adjustment it is possible to adjust for misalignment of the door during and after installation.

3. Heavy duty steel keeps

Depending on door frame material, 20mm - 24mm wide heavy duty steel keeps are manufactured using high grade steel, plated to comply with the highest Grade 4 corrosion resistance

requirement of BS EN1670 European Standard.

4. Latch and deadbolt

Engineered alloy sprung latch with a nickel plated steel deadbolt provides the AV2+ with maximum strength in the centre of the door.

(An AV2+ WITHOUT deadbolt should always be used for communal entrance doors)

5. High performance gearbox

Tested to 100,000 cycles the sprung gearbox offers the lowest possible operating forces and helps prevent handle ‘droop’.

6. Cylinders and handles

AV2+ Multi-point Locks have been designed to harmonise with the Winkhaus range of security europrofile cylinders, Armorshield™ cylinder guard and Winkhaus XR6-51 Kitemark profile cylinder (KM531333). Meets PAS23/24 Security and durability standards, both for single domestic dwellings and multi-occupancy dwellings. The 92PZ locking system is compatible with industry standard handles and also with the Winkhaus Palladio™ and DDA handle which has OwlMark™ approval for use by the elderly and infirm.

7. Lifetime adaptability

AV2+ is part of the ‘Winkhaus family of locks’ with exactly the same routing details as the Winkhaus Cobra™ and Trulock+ range of locking mechanisms.


Technical Details:
Distance between hooks: 1490mm
Faceplate: 16mm & 20mm


*The lock is designed to accept a “screw on” 12v electronic motor which can then be controlled by means of industry standard multi option access control systems. When activated the two solid high tensile steel hooks and central latch are withdrawn thus forming the blueMatic AV2-E. The extreme versatility of the blueMatic AV2-E Electronic Locking system is achieved through its easy integration with all access control systems which subsequently leads to its suitability for many different applications.
