WinkHaus Scorpion XL3 With Latch, 2 Hook and 2 Rollers

This Winkhaus lock has a latch, 3 hooks and 2 rollers locking points

Standard version available only. Short version (1210mm between hooks) is now OBSOLETE. You can follow the links below for suitable replacement products:

Winkhaus Scorpion Centre Case

ERA Style 3PLACEIT Lock with Hook - 2 Hook 2 Roller with Shootbolt Capability

Technical Details:
Split Spindle
Backset: 35mm

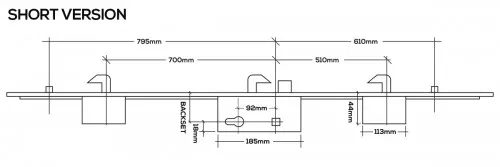

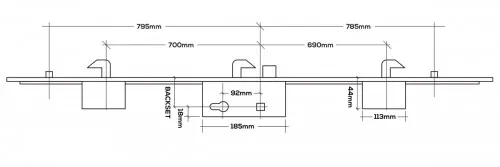

Distance between rollers: 1580mm (standard version) or 1405mm (short version)
Distance between hooks: 1390mm (standard version) or 1210mm (short version)
Faceplate: 16mm
